submersible ultrasonic transducer for cleaning machine
The product is suitable for cleaning electroplated parts, clocks and watches, hardware and machinery parts, polyester filter core, semiconductor silicon wafers, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils and other industries.
The advantages of ultrasonic shock plate are as follows:

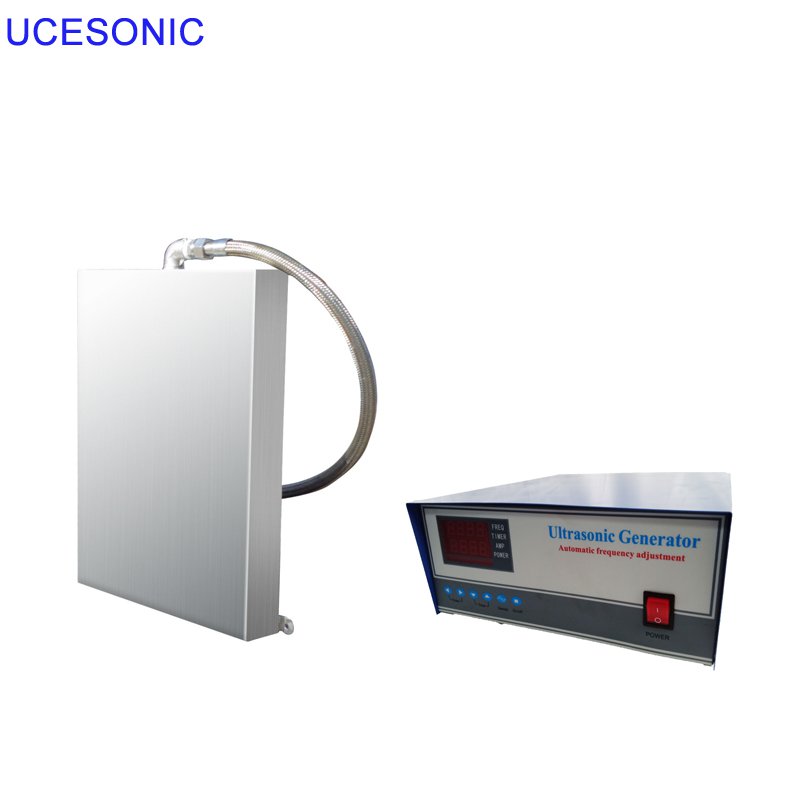

1. Ultrasound shock plate is composed of shock plate and
ultrasonic generator. When the standard type of
ultrasonic cleaning machine is not suitable for specific working environment, it can be customized except for special specifications. It can also be converted into an
ultrasonic cleaner by using an input shock plate device, which can save the cost of equipment and achieve the cleaning effect.
2. The shock plate is made of stainless steel with alkali and acid resistance. The surface of the shock plate is plated with hard chromium. Ultrasound transducer adopts high-quality and high-performance products with high efficiency of electro-acoustic conversion.
3. The split structure is adopted, and the high frequency wire with socket is used between the shock plate and the ultrasonic generator, which is convenient to use and maintain.
4. The installation arrangement is flexible. The ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank according to the need.
5. Ultrasound shock plate can be customized according to customer requirements for cleaning electroplated parts, clocks and watches, hardware and machinery parts, polyester filter core, semiconductor silicon, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils and other industries, widely used.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
