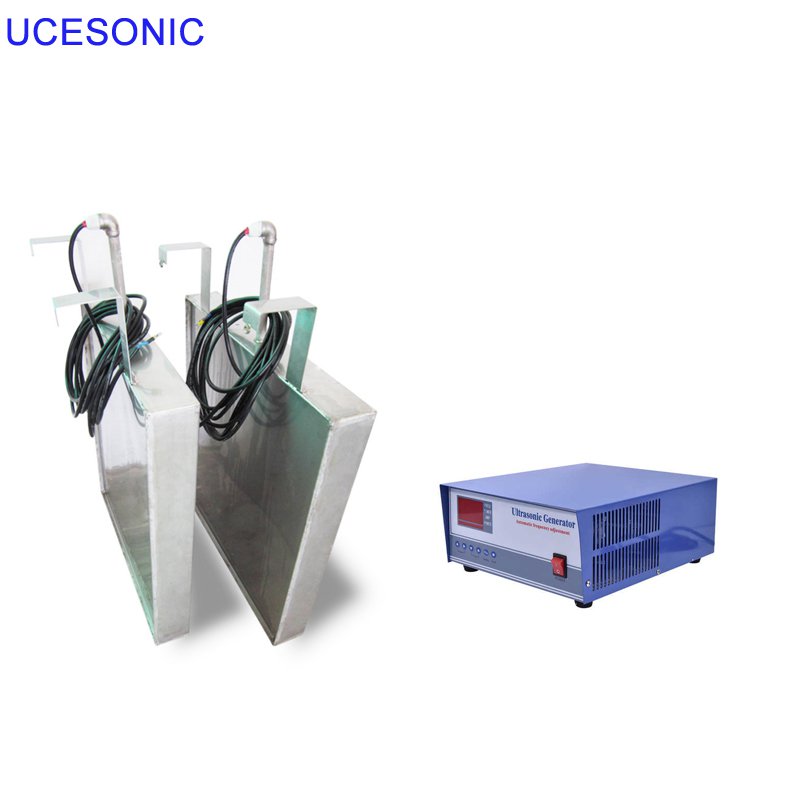

submersible ultrasonic generator and transducer 28khz/40khz
Professional production of input side-shock bottom-shock type ultrasonic vibration plate/one-year maintenance/repair of various types of vibration plate series input type ultrasonic vibration plate (vibration plate) consists of
ultrasonic transducer adhering to fully sealed stainless steel vibration box and ultrasonic generator. When the trough-type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is not only suitable for self-construction of cleaning trough or installation of ultrasonic cleaning function in existing cleaning trough, but also suitable for maintenance and replacement of the existing ultrasonic vibration plate of ultrasonic cleaning equipment, for installation of ultrasonic vibration plate in large-scale
ultrasonic cleaning machine system, and also suitable for ultrasonic extraction equipment and ultrasonic sewage. The processing equipment is equipped with ultrasonic wave. The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side and bottom) to achieve different cleaning effects. Ultrasound vibration plate (vibration plate) is generally customized according to user needs and actual working conditions.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
