submersible ultrasonic transducer box for industry cleaning

submersible ultrasonic transducer box for industry cleaning

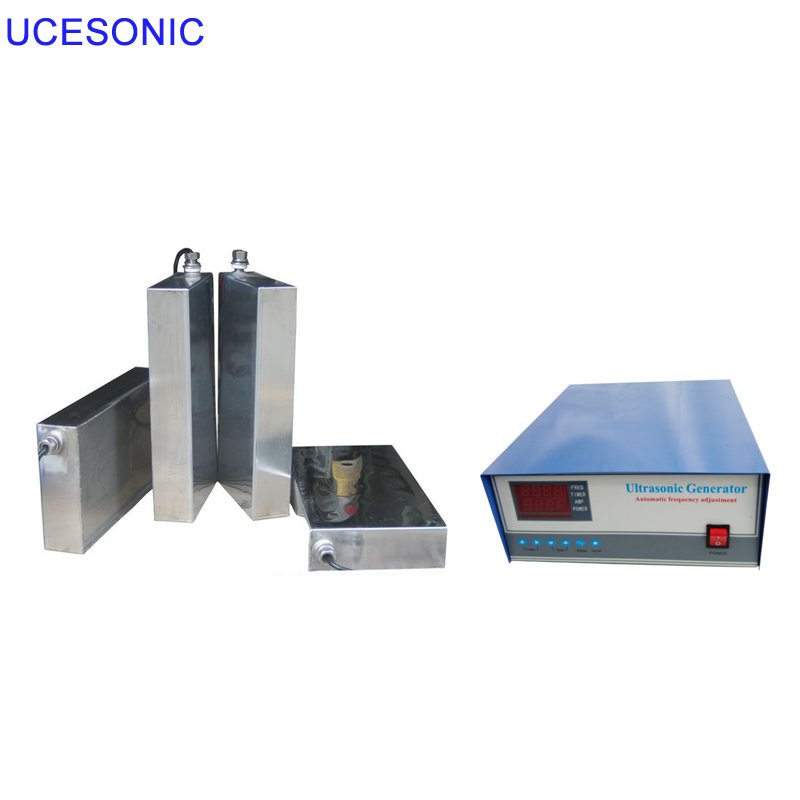

Ultrasound vibration plate, also known as ultrasonic vibration box or ultrasonic cleaning box, is an ultrasonic cleaning device which is made up of the ultrasonic oscillator bonded and sealed in the stainless steel box and the ultrasonic generator. Usually placed in various cleaning tanks, to achieve the purpose of ultrasonic cleaning. The size of vibration plate and the direction of lead pipe can be made into three types: bottom vibration, side vibration and top vibration according to different installation positions, so as to achieve the effect of thorough cleaning with different requirements. Applicable to electronic parts, electroplated hardware, automotive accessories, optical lenses, jewelry, glassware, filter core, spinneret, medical equipment and other areas.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
UCE-UITP300W	300*190*100	25,28,33,40,80,130	300	6
UCE-UITP600W	360*275*100	25,28,33,40,80,130	600	12
UCE-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
UCE-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
UCE-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
UCE-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
UCE-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
UCE-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
UCE-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
UCE-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
