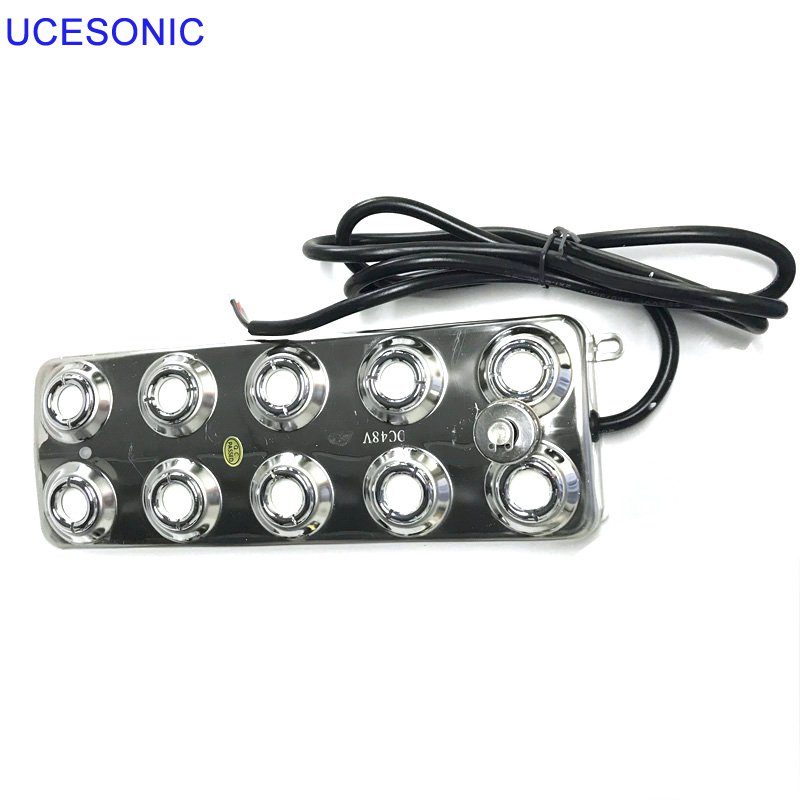

large ultrasonic atomizing piezoelectric transducer

2019-06-12 15:14 admin
large ultrasonic atomizing piezoelectric transducer
1. The atomization effect is produced by the vibration of the atomizer up and down 1700KHZ.
2. The atomizer will stop working automatically if its maximum temperature is controlled at 55+3 degrees.
3. The atomizer water column represents the use of a capacitor. In the environment of good water quality, it is recommended to use the atomizer of steel water column. Only when the surrounding capacitance of steel water column is relatively high, can it automatically feel the operation. The environment with more scale will cause scale to accumulate around the water column, which will make the atomizer unable to work. The water quality with more scale is recommended as steel float atomizer. The steel float can work up and down mechanically, and can also operate normally in the environment with more scale.
4. When the atomizer is separated from water, there is the possibility of burning out immediately, which belongs to dry burning.
5. The use of one atomizer will result in a temperature rise of about 3 degrees, two atomizers will rise to 4 degrees, three atomizers will rise to 5 degrees, and the use of 20 atomizers at the same time needs to consider the issue of heat dissipation.

Type

Voltage

Size

Power

Water Rate

UCE-UHT-230W

48V

253*91*70MM

230

4.5KG/H

large ultrasonic atomizing piezoelectric transducer

large ultrasonic atomizing piezoelectric transducer
