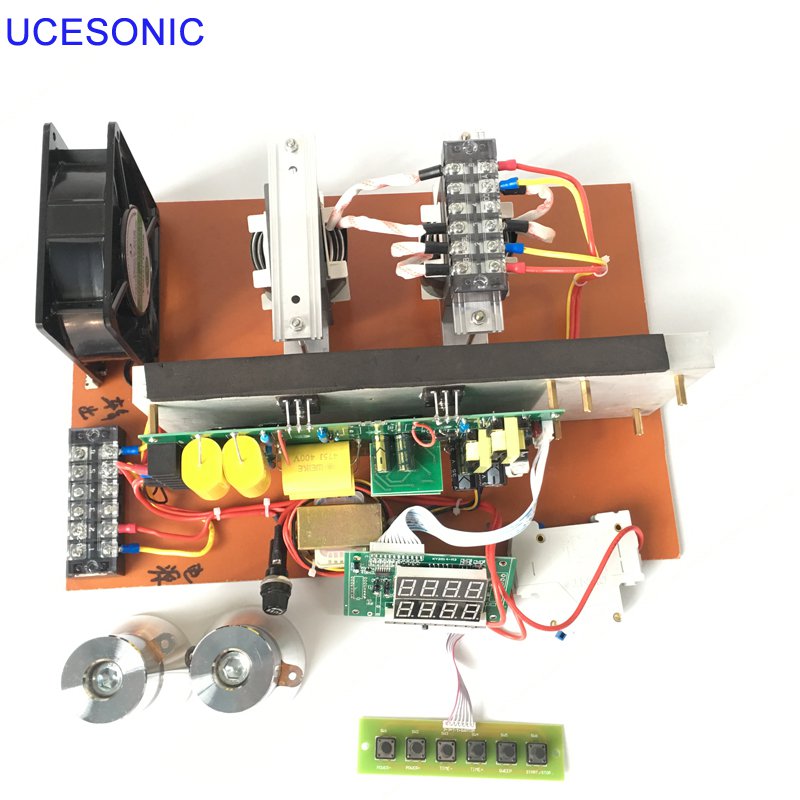

40khz ultrasonic transducer driver circuit for cleaning

Operating voltage AC220 + 10V. It has protective measures such as over-voltage, over-current and output short circuit. 220V ultrasonic circuit board has the function of frequency fine-tuning and frequency automatic tracking, and can achieve the best results under different working conditions. Drive the cleaning fluid to form a fine reflux, so that the workpiece dirt can be quickly removed from the workpiece surface while being stripped by ultrasound, and improve the cleaning efficiency. It has the function of stepless power regulation. The output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects. It can also set time and operate safely.



Characteristics of ultrasonic PCB generator



1. Driven by high-power devices, the output power is strong. With the latest self-excitation control circuit, the ultrasonic density is greatly improved, the cleaning effect is more fine and the cleanliness is higher.

2. The contour design is more concise and the failure rate is reduced.

3. Simple debugging and adaptability.



Technical index



1. Working Voltage: AC220V + 10%

3. Relative humidity: 40%-90%
