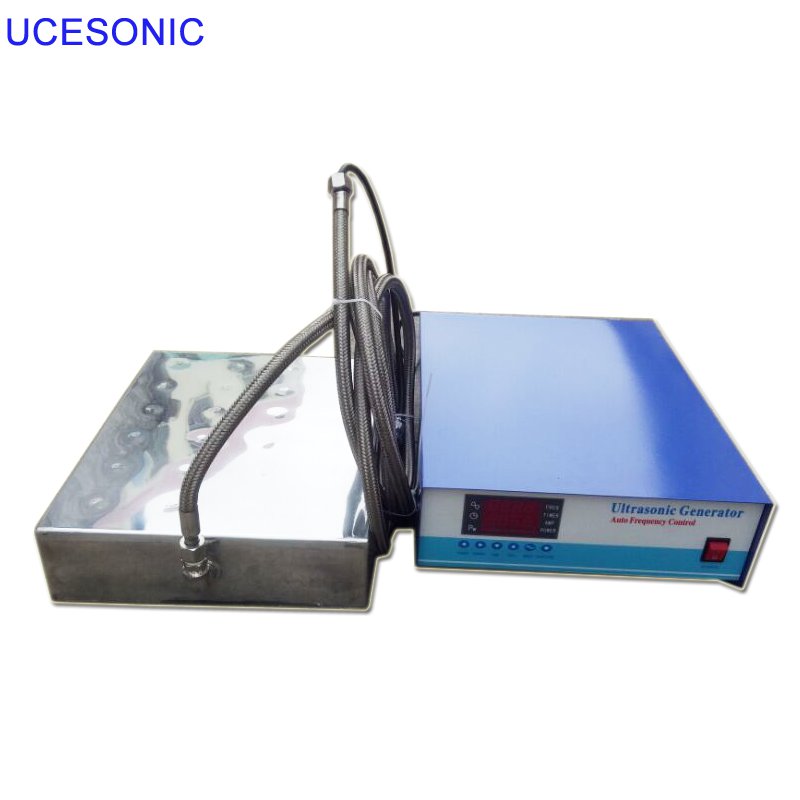

Immersible Ultrasonic cleaner Transducer for ultrasonic cleaner
Characteristics of ultrasonic vibration plate:
Material: The vibration plate is made of imported SUS304 2.5mm stainless steel plate, and the vibration surface is made of SUS316 2.5mm stainless steel plate.
1. Surface: Ultrasound vibration surface is plated with hard chromium 5um to enhance the service life of vibration surface.
2. Structure: The whole machine is easy to install or move with movable hook device. The
ultrasonic transducer fixed by special imported glue and welding screw is durable. Frequencies of 25KHZ/28KHZ/40KHZ and other frequencies are optional. The whole machine has stainless steel structure.
3. Electrical system: Electrical components are manufactured with imported high-quality components, so as to achieve zero failure and reduce unnecessary troubles caused by the need for professional maintenance in the use process.
4. Ultrasound Generator: With the digital frequency synthesis technology controlled by micro-computer, the ultrasonic power can be continuously adjusted (digital display). It has perfect protection functions: overheating and overcurrent protection. It also has four-bit timer to make the time control accurate to second. At the same time, it also has the function of sweeping frequency.
4. Power supply: heating: 220V/50HZ
5. Scope of application: cleaning hardware, electroplating, electronics, clocks, machinery, tools, glasses, jewelry, semiconductor silicon, polyester spinneret, polyester filter core and glassware.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
