Immersible Ultrasonic Vibration Transducer and generator

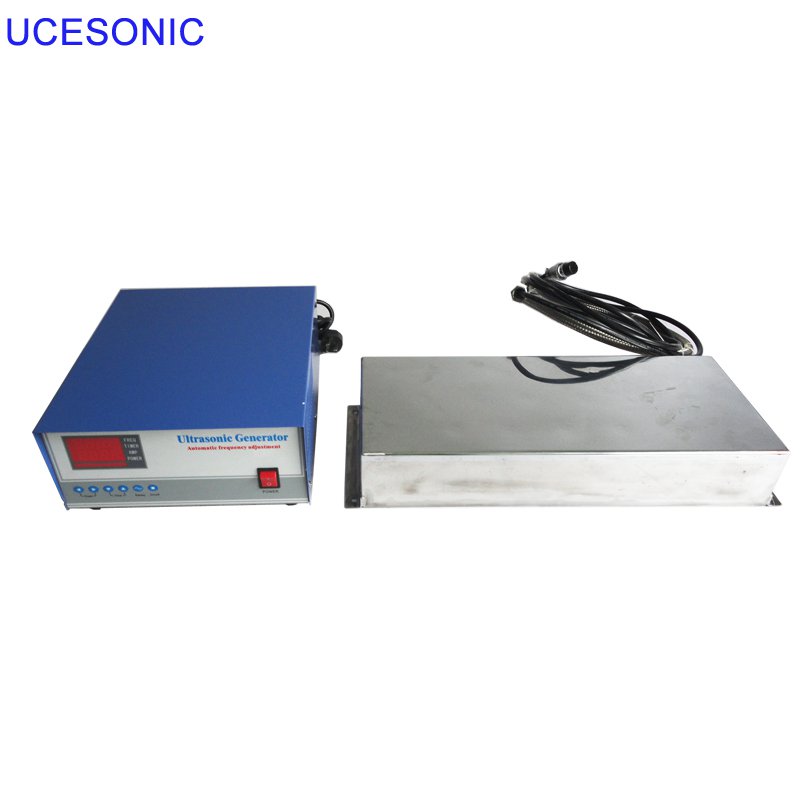

The ultrasonic vibration plate matched with the ultrasonic vibration plate for the cleaning tank of the ultrasonic vibration plate is composed of two parts: the stainless steel vibration box and the
ultrasonic generator, which are all sealed by the
ultrasonic transducer. When the groove-type ultrasonic cleaning equipment is not suitable for the specific work needs, the ultrasonic vibration plate is not only suitable for the self-construction of the cleaning tank or the installation of the ultrasonic cleaning function for the existing cleaning tank, but also suitable for the supersonic cleaning of the existing ultrasonic cleaning equipment. Sound wave vibration plate repair and replacement, suitable for large-scale
ultrasonic cleaning system with ultrasonic plate, but also suitable for ultrasonic extraction equipment and ultrasonic sewage treatment equipment with ultrasound. The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side and bottom) to achieve different cleaning effects. Ultrasound vibration plate (vibration plate) is generally customized according to user needs and actual working conditions.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
