Immersion Underwater Ultrasonic Cleaner 28khz/40khz transducer

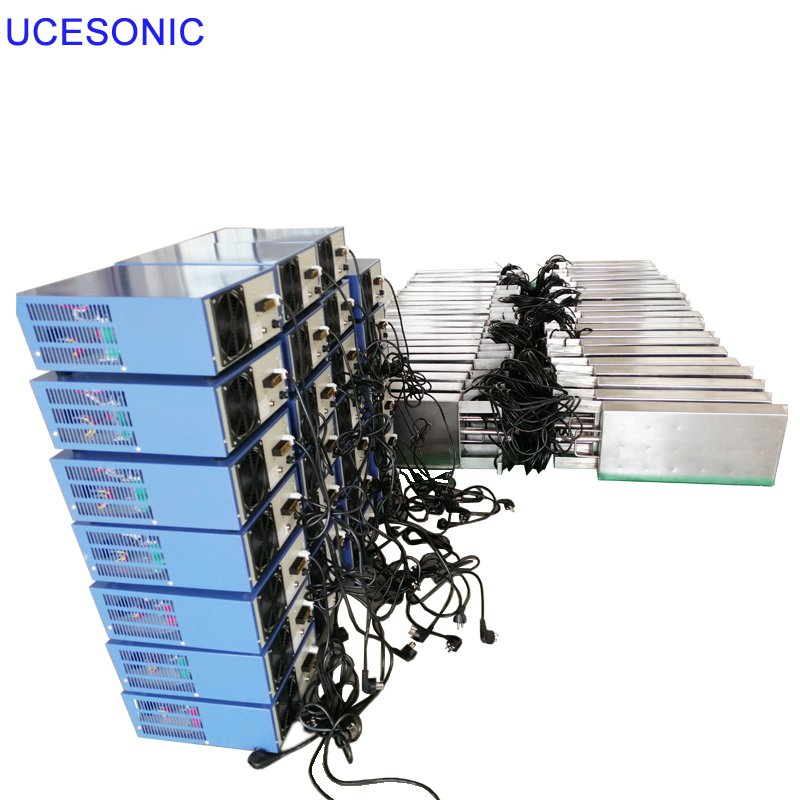

Ultrasound cleaning vibration plate is an ultrasonic cleaning device which is made up of
ultrasonic generator and
ultrasonic transducer in stainless steel box. It is suitable to be placed in various cleaning tanks.
In the specific working environment, besides the special specifications of the
ultrasonic cleaning machine, the existing equipment can also be converted into the ultrasonic cleaning machine by using the input vibration plate device, so as to achieve the purpose of ultrasonic cleaning. The size of vibration plate and the direction of lead pipe can be made into three types: bottom vibration type, side vibration type and suspension type according to different installation positions.
1. Imported transducer with high quality and high performance and unique ultrasonic generator are adopted. The cleaning power is strong and the performance is stable.
2. It is made of 304/316L (2.5mm) stainless steel plate with hard chromium plating, acid and alkali resistance, good sealing, beautiful appearance and convenient maintenance.
3. The design of harmonic matching between the ultrasonic vibration plate and the ultrasonic generator is convenient to use and easy to maintain.
4. The ultrasonic power is stable and equipped with an independent controller (electric box) to facilitate the movement of the equipment.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
