Closed Ultrasonic Reactor for Pharmaceutical Batch Processing

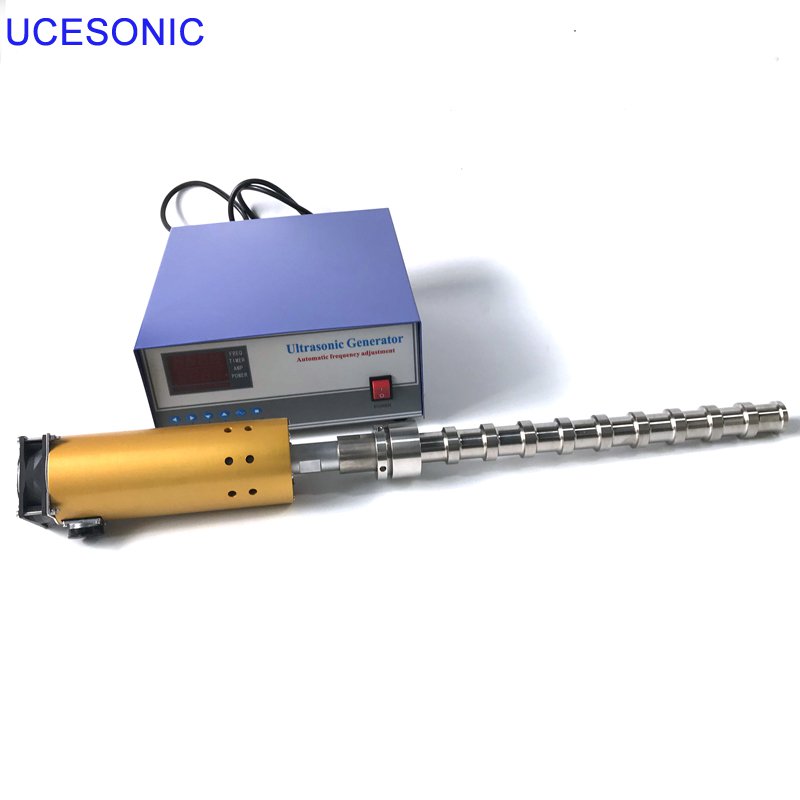

Ultrasound vibrating rod is mainly used for cleaning the inner wall of thick-walled metal pipes, on-line ultrasonic anti-scaling of boilers, ultrasonic cleaning in vacuum/pressure situations, various pipeline ultrasonic treatment and pipeline acoustic chemical treatment, etc.

Product characteristics:

1. The ultrasonic cavitation is generated around the vibrating rod, and the ultrasonic energy is distributed around the rod very uniformly.

2. The power output of the vibrating rod is not affected by the load changes such as liquid level, tank capacity and temperature difference, and the power output is stable and uniform.

3. The service life of the traditional ultrasonic vibration plate is more than 1.5 times.

5. Tube vibrator can be used in non-acidic liquids below 40 degrees. Solid vibrator can be used in any occasion, but the effective length will not exceed 700 degrees.

6. Sealing and waterproof, safe to use.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
