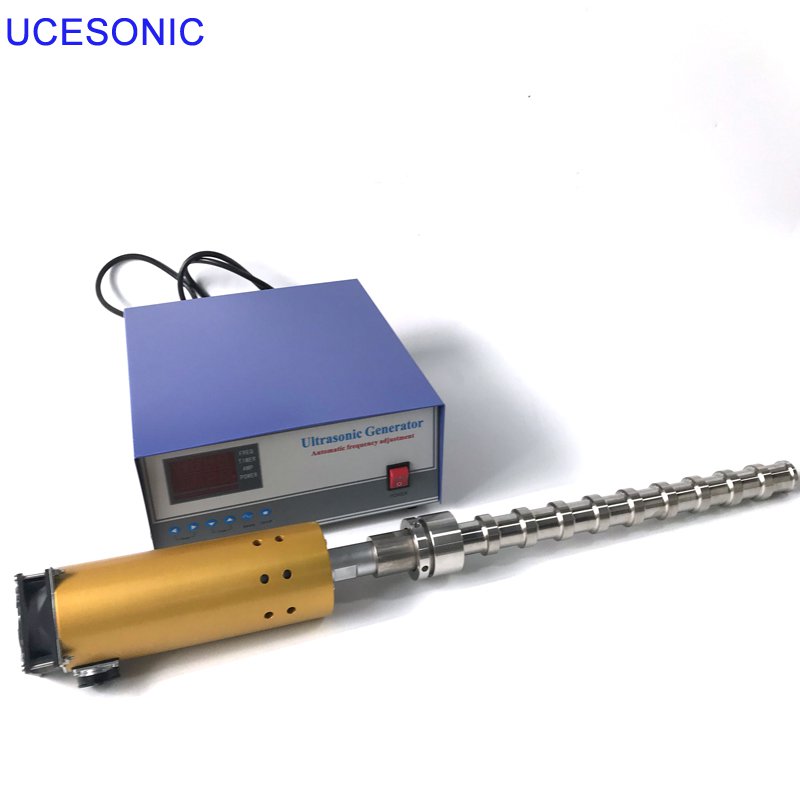

Ultrasonic Generator and Biodiesel Reactor 2000W 20khz

The circuit part adopts advanced energy-saving and environmental protection technology of Germany and full-wave working mode. Radial vibration generates ultrasonic wave at 360 degrees near the vibrating rod. Its amplitude is between the ultrasonic cleaner and the processor, so the direction of use is flexible. Ultrasound vibration rod can be used in any position, and occupies a very small volume space, can be very flexible to use. Ultrasound vibrating rods are widely used in traditional ultrasonic pretreatment, biochemistry, food, chemical, pharmaceutical and other industries.

In biochemistry, ultrasonic vibration rods have been widely used in emulsification, separation, homogenization, extraction, catalytic reaction and other aspects to improve productivity.

In the food industry, the use of ultrasonic vibrating rods in uniform mixing plays an important role in homogeneity.

In the chemical industry, the ultrasonic vibration rod is suitable for cleaning pipelines, tanks and kettles.

In the process of using waste oil and palm oil to extract biodiesel, the catalytic effect of ultrasound is astonishing, and the efficiency is increased by more than ten times. It will have broad prospects for development in the petrochemical industry. At present, there are more than 40 application cases.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
