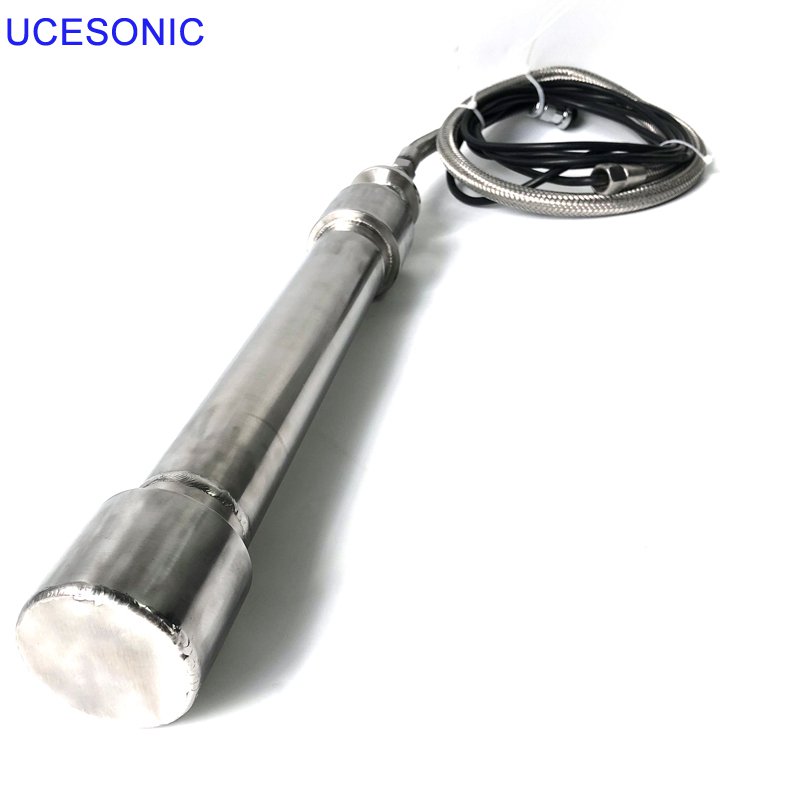

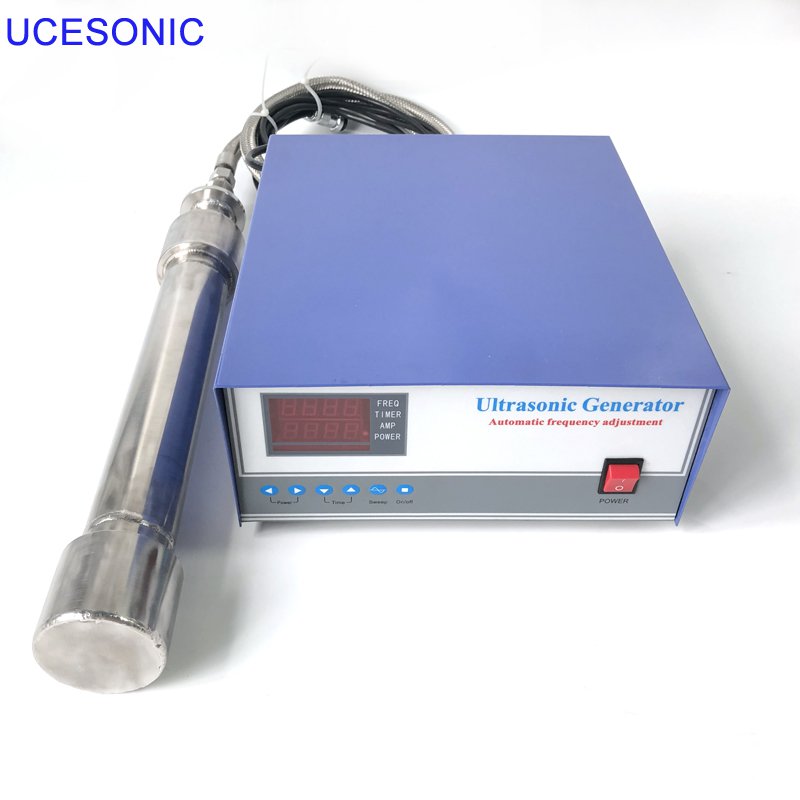

tubular ultrasonic transducer for cleaning 28khz/40khz

Application Range of Ultrasound Vibrating Bar

1. Biological industry: essential oil extraction, traditional Chinese medicine preparation, natural pigment extraction, polysaccharide extraction, flavonoid extraction, alkaloid extraction, polyphenol extraction, organic acid extraction, oil extraction.

2. Application of laboratory, University and research institute: chemical agitation, logistics agitation, cell crushing, product crushing, material dispersion (suspension preparation) and coagulation.

3, chemical industry: ultrasonic emulsification and homogenization, ultrasonic gel liquefaction, resin defoaming, ultrasonic crude oil demulsification.

4. Ultrasound biodiesel production: In all kinds of chemical production, enhanced transesterification and chemical reactions are obviously accelerated.

5. Water treatment industry: degradation of polluted water quality.

6. Food and cosmetics industry: alcoholization of alcohol, refinement of cosmetics particles, extraction of nanoparticles.

7. Graphene Industry: Graphene dispersion, preparation of graphene nanoparticles.

8. In some scenic lakes and rivers, ultrasonic vibrating rods can also be used for algae control.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-US1	US-61	25-27	1000	500	Φ50-55	68000
UCE-US5	US-25	25-27	1500	850	Φ50-55	68000
UCE-US6	US-16	25-27	2000	1100	Φ50-55	132000
