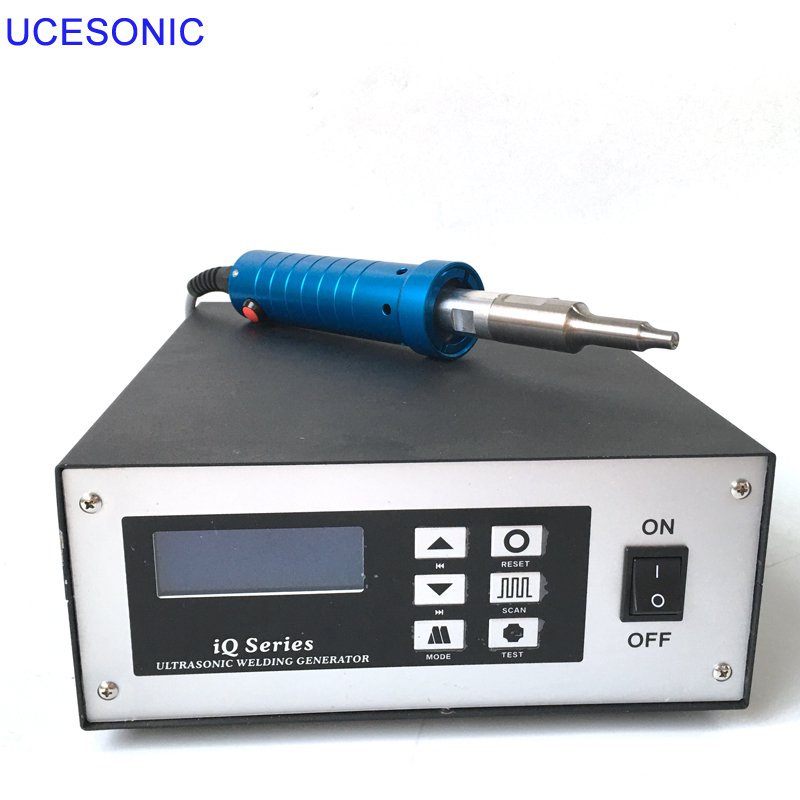

Spot Welder For Transformers Handheld Spot Welder Ultrasonic Machine
Ultrasonic spot welding machine can be used for butt welding of thermoplastics, or changing the welding head according to the customer's requirements, for riveting, spot welding, embedding, cutting and other processing processes. Compared with other traditional processes (such as adhesive, electric welding or screw fastening), it has the advantages of high production efficiency, good welding quality, environmental protection and energy saving. The ultrasonic spot welding machine adopts the imported piezoelectric ceramic to vibrate the crystal with high efficiency and long service life; the original vertical normal temperature circulating self cooling
ultrasonic generator has the lowest failure rate in the whole industry; the aluminum alloy casting whole frame ensures the rigidity of the machine body; the gear rack lifting mechanism is easy to operate and precise in positioning; there are two operation modes, automatic and manual, which are convenient for debugging; it can be equipped with the original ergonomics The cabinet type working table designed by Li Li, with automatic counter and reserved foot switch interface. Ultrasonic spot welding machine is mainly used for positioning and bearing force of workpieces. The metal tooling or resin casting tooling that imitates carving and polishing has the function of protecting workpieces from scratch. In addition, the tooling can be made into automatic tooling and linked with welding machine to improve operation mode or production efficiency. Ultrasonic spot welding machine can also be used for welding, riveting, spot welding of thermoplastic products, inlaying and edge pressing between metal parts and plastic parts. It has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, firm welding and convenient operation. The product adopts advanced circuit, program control, pneumatic transmission, automatic over-current protection and safe operation protection circuit. The circuit adopts the circuit board inserted structure, which is convenient for maintenance and replacement. In addition, a new type 15KHz
ultrasonic plastic welding machine with electronic delay welding device is designed. It has its unique advantages for welding soft PE and PP materials, as well as plastic welding parts with large diameter and long length To meet the needs of all kinds of products, to improve the production efficiency and product grade for all users.
Type |
power
(W) |
Frequency |
Welding time |
Contains |
UCE-HH300W |
300W |
20khz,28khz,30khz,35khz,40khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH500W |
500W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH900W |
900W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1000W |
1000W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1200W |
1200W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
