dual frequency ultrasonic cleaning transducer 40khz/80khz

2019-06-01 22:38 admin
dual frequency ultrasonic cleaning transducer 40khz/80khz
Ultrasound oscillator is also called ultrasonic transducer. The whole part of the industry that connects the transducer and horn is called oscillator.

Ultrasound cleaning transducer realizes the conversion between electric energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the device by radiation cover blocks matched with acoustic impedance. Frequency is fixed in production. Transducers with different frequencies can be customized according to customer's needs, and transducer oscillators with good production can only be fixed in this frequency. That's the rate. In fact, the threshold of ultrasonic cavitation is closely related to the frequency. The higher the frequency, the higher the cavitation threshold. The lower the frequency, the lower the cavitation threshold, the easier the cavitation will occur.
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
UCE-UT-20100
PZT-8

94

900

20

10-20

5200

100

UCE-UT-25100
PZT-4
77

710

25

10-20

6600

100

UCE-UT-28120
PZT-4
66

720

28

10-20

7800

120

UCE-UT-28100
PZT-8
66

625

28

10-20

5200

100

UCE-UT-28100
PZT-4
66

624

28

10-20

6600

100

UCE-UT-30100
PZT-8
61

555

30

10-20

5200

100

UCE-UT-2560
PZT-4
77

530

25

10-20

5400

60

UCE-UT-2860
PZT-8
68

470

28

10-20

3800

60

UCE-UT-2850
PZT-4
82

425

28

10-20

4100

50

UCE-UT-3360
PZT-8
58

420

33

10-20

3800

60

UCE-UT-4060
PZT-8
55

300

40

10-20

3800

60

UCE-UT-4060
PZT-4
56

310

40

10-20

5400

60

UCE-UT-4050
PZT-4
54

260

40

10-20

4100

50

UCE-UT-4050-1
PZT-4
57

300

40

10-20

4100

50

UCE-UT-5435
PZT-4
36

135

54

10-20

3200

35

UCE-UT-6860
PZT-8
80

460

68

10-20

3800

60

UCE-UT-68120
PZT-4
67

588

68

10-20

7800

120

UCE-UT-8060
PZT-4
60

325

80

10-20

5400

60

UCE-UT-12060
PZT-4
56

260

120

10-20

5400

60

UCE-UT-13550
PZT-4
54

215

135

10-20

4200

50

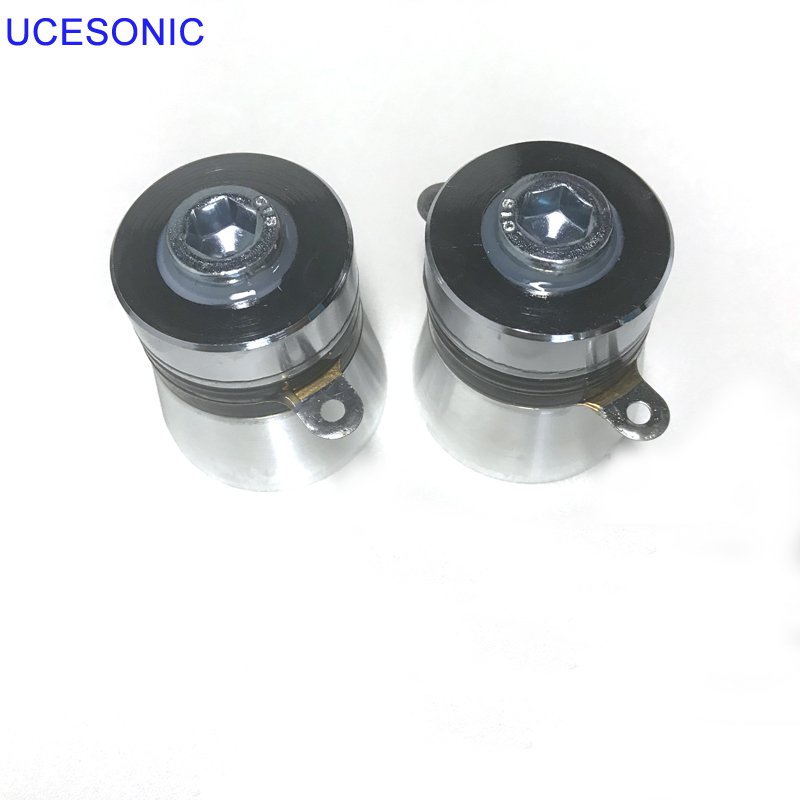

dual frequency ultrasonic cleaning transducer 40khz/80khz

dual frequency ultrasonic cleaning transducer 40khz/80khz
