low frequency ultrasonic transducer for cleaning machine

low frequency ultrasonic transducer for cleaning machine

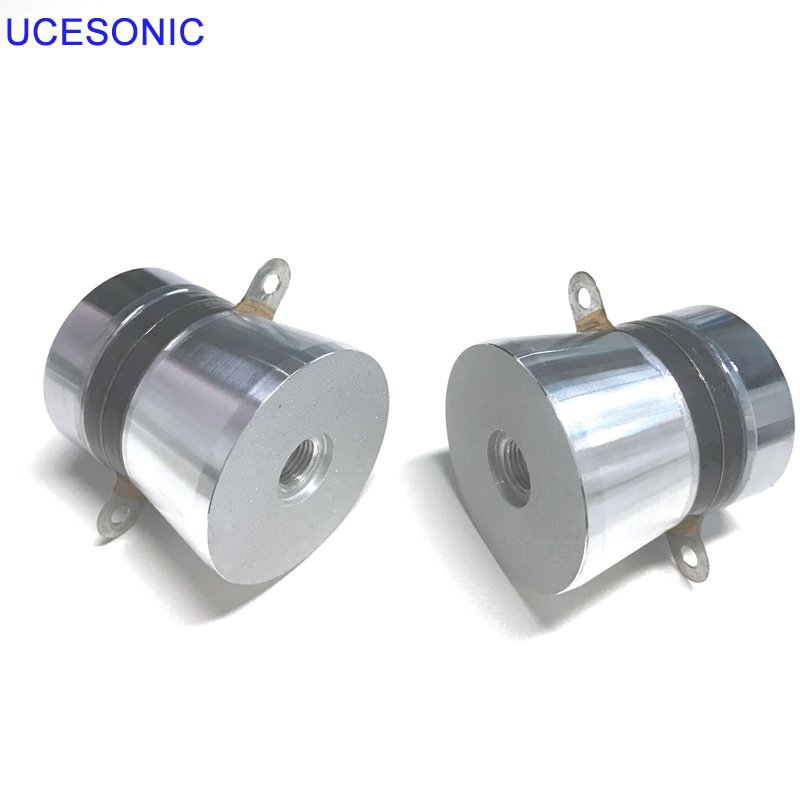

The ultrasonic transducer is composed of a conductor film for electrode connection, which is formed along a plane perpendicular to the stacking direction and electrically connects the predetermined external electrodes of the first external electrode group and the predetermined external electrodes of the second external electrode group respectively. Piezoelectric transducer is a device which can convert electric energy and sound energy by piezoelectric effect. The ultrasonic transducer provided by our company is made of high-quality piezoelectric ceramic components, which are carefully designed, processed and tested. It is a bolt-fastened type and can produce stable ultrasonic wave when the load changes. It has the characteristics of large amplitude, high electro-acoustic conversion rate, low calorific value, high reliability and good consistency.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
