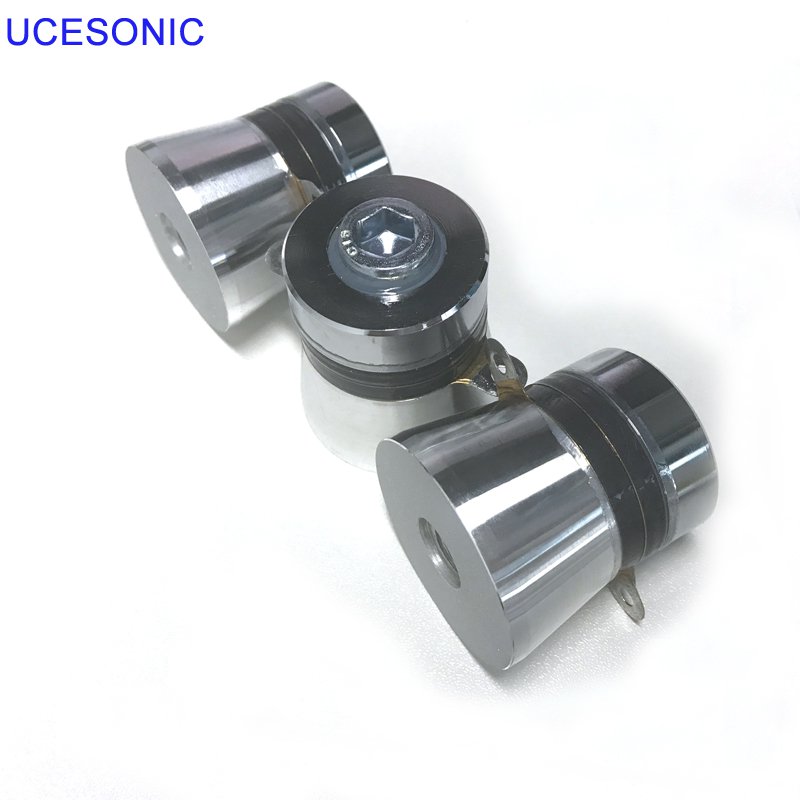

dual frequency ultrasonic transducer with ultrasonic cleaner
In some places, such as cleaning deep screw holes, it is advisable to use high radiation sound intensity oscillator. At this time, the radiator of oscillator often has a sharp focusing shape to improve the sound intensity of radiation surface. This kind of ultrasonic cleaning transducer is not usually bonded to the cleaning tank, but is directly pulled out of the liquid for cleaning.

Distribution and bonding of ultrasonic transducer in cleaning tank There are some products of ultrasonic cleaning machine at present. The oscillators attached to the bottom or wall of cleaning tank are too densely distributed and arranged one by one. The electric power intensity of the input oscillator reaches 2-3 watts per square centimeter. On the one hand, such high strength will accelerate the cavitation corrosion on the surface of stainless steel plate (the appearance contacted with the cleaning solution) and shorten the service life. On the other hand, the sound intensity is too high. A large number of large bubbles will occur near the surface of the steel plate, which will increase the sound transmission loss and weaken the cleaning effect away from the oscillator.
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
UCE-UT-20100
PZT-8

94

900

20

10-20

5200

100

UCE-UT-25100
PZT-4
77

710

25

10-20

6600

100

UCE-UT-28120
PZT-4
66

720

28

10-20

7800

120

UCE-UT-28100
PZT-8
66

625

28

10-20

5200

100

UCE-UT-28100
PZT-4
66

624

28

10-20

6600

100

UCE-UT-30100
PZT-8
61

555

30

10-20

5200

100

UCE-UT-2560
PZT-4
77

530

25

10-20

5400

60

UCE-UT-2860
PZT-8
68

470

28

10-20

3800

60

UCE-UT-2850
PZT-4
82

425

28

10-20

4100

50

UCE-UT-3360
PZT-8
58

420

33

10-20

3800

60

UCE-UT-4060
PZT-8
55

300

40

10-20

3800

60

UCE-UT-4060
PZT-4
56

310

40

10-20

5400

60

UCE-UT-4050
PZT-4
54

260

40

10-20

4100

50

UCE-UT-4050-1
PZT-4
57

300

40

10-20

4100

50

UCE-UT-5435
PZT-4
36

135

54

10-20

3200

35

UCE-UT-6860
PZT-8
80

460

68

10-20

3800

60

UCE-UT-68120
PZT-4
67

588

68

10-20

7800

120

UCE-UT-8060
PZT-4
60

325

80

10-20

5400

60

UCE-UT-12060
PZT-4
56

260

120

10-20

5400

60

UCE-UT-13550
PZT-4
54

215

135

10-20

4200

50
