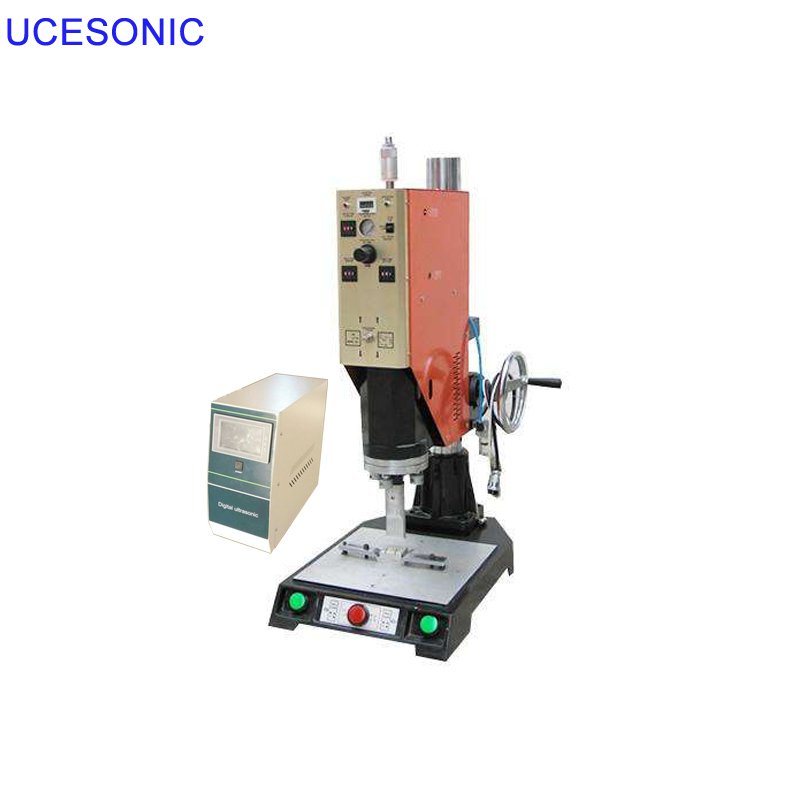

20khz/15khz Ultrasonic Welding Machine of Fabric Vertical Blind
1. The machine adopts the technology of computer touch screen, and the welding can achieve the accuracy of 0.1ms error.
2. The machine uses the digital code fine control switch, 1 / 100 accurate setting;
3. The turbine is used to easily adjust the travel of the machine body, which solves the regulation drawbacks of the conventional machine. Aluminum / titanium alloy variable spoke, strong and stable ultrasonic;
4. Adopt IC precision control circuit and automatic overload protection system;
5. The machine adopts four point balance adjustment and simple adjustment of welding head;
6. Original vibrator is adopted, with strong power output, larger than that of the same industry;
7. It does not need heating and preheating, the working products are not deformed, the appearance is beautiful, the operation is simple, convenient, safe, and the machine structure is compact and reasonable.
8. There is resonance when there is no load or no load, and it is unnecessary to adjust the frequency of welding head;
9. Optional rectangular column / cylinder, guide bearing, precision fine adjustment;
Application scope of intelligent ultrasonic welding machine:
ABS, PA, PP, pet, PC, PS, acrylic and other engineering plastic products welding, riveting, embedding molding; kettle, folder, electronic products, toys, electronic watches, musical instruments, chargers, mobile phone shell, CD shell and other plastic parts welding, riveting, molding, nut embedding, etc.
Type |
Power(W) |
Frequency (KHz) |
UCE-UWM600W |
600W |
15KHZ/20KHZ/28KHZ/40KHZ |
UCE-UWM900W |
900W |
15KHZ/20KHZ/28KHZ/40KHZ |
UCE-UWM1000W |
1000W |
15KHZ/20KHZ/28KHZ/30KHZ |
UCE-UWM1500W |
1500W |
15KHZ/20KHZ |
UCE-UWM1800W |
1800W |
15KHZ/20KHZ |
UCE-UWM2000W |
2000W |
15KHZ/20KHZ |
UCE-UWM2600W |
2600W |
15KHZ |
UCE-UWM3200W |
3200W |
15KHZ |
UCE-UWM4200W |
4200W |
15KHZ |
