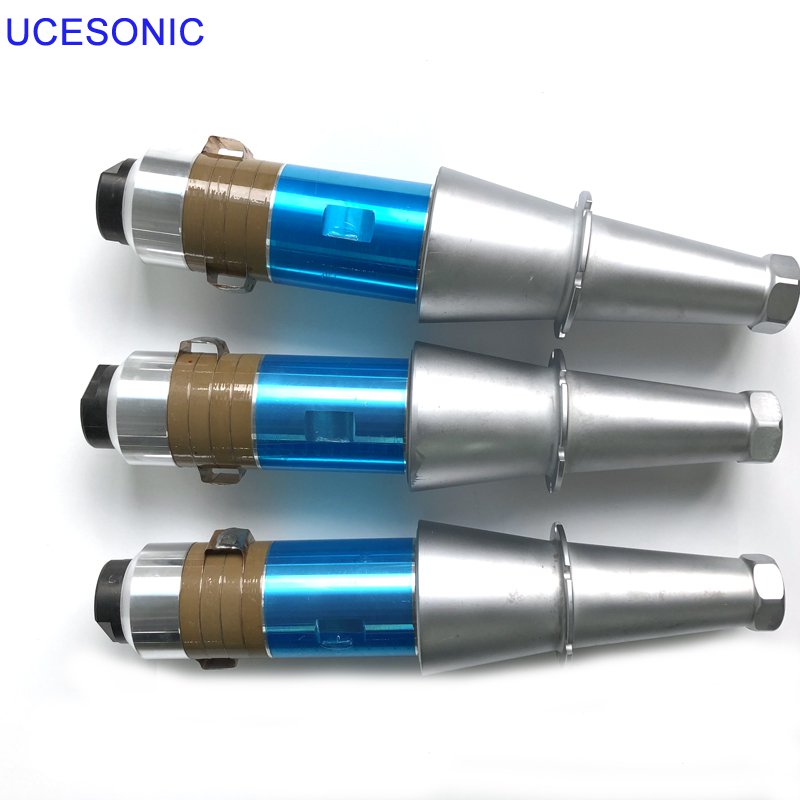

high power piezoelectric ultrasonic welder transducer

2019-06-21 10:18 admin
high power piezoelectric ultrasonic welder transducer
Ultrasound horn (ultrasonic horn) as its name implies is to cooperate with the ultrasonic transducer to change the ultrasonic vibration.
Functional components of amplitude of motion. Its main function is to change the amplitude of the transducer (generally increasing) and improve the vibration.
Speed ratio, efficiency, mechanical quality factor, heat resistance, temperature range, extension
The service life of long transducer. The ultrasonic transducer is adjusted by installing a horn (ultrasonic horn).
Load matching between transducer and ultrasonic tool head reduces resonant impedance and makes it resonant frequency.
The work improves the efficiency of electro-acoustic conversion, effectively reduces the heat generated by the ultrasonic transducer, and improves the service life.
Type Full-length(mm) Joint Bolt(mm) Frequency(KHz)

Resonance Impedance(Ω)

Capacity(pF)

Input Power
(W)
UCE-UWT152500 P8

153

M20×1.5

15

15

13000

2500

UCE-UWT152000 P8

167

M20×1.5

15

10

9500

2000

UCE-UWT151500 P4

171

M18×1.5

15

12

12500

1500

UCE-UWT151800 P4

118

M20×1.5

20

15

15000

1800

UCE-UWT202000 P8

128

M18×1

20

10

11000

2000

UCE-UWT202000 P8

124

M18×1.5

20

12

10000

1500

UCE-UWT20700 P8

112

1/2-20 UNF

20

15

9000

700

UCE-UWT20900 P8

133

1/2-20 UNF

20

15

10000

900

UCE-UWT20600 P8

121

M18×1.5

20

15

6000

600

UCE-UWT30500 P8

77

M10×1.5

30

5

5500

500

UCE-UWT28200 P4

92.1

M10×1

28

20

3000

200

UCE-UWT28100 P8

91

M8×1

28

25

2200

100

UCE-UWT28250 P8

94

1/2-20 UNF

28

20

4000

250

UCE-UWT202000 P8

128

1/2-20 UNF

20

10

20000

2000

UCE-UWT201500 P8

124

1/2-20 UNF

20

10

16000

1500

UCE-UWT201300 P8

128

1/2-20 UNF

20

10

12500

1300

UCE-UWT201500 P8

132

1/2-20 UNF

20

10

11000

1500

UCE-UWT20900 P8

123

1/2-20 UNF

20

10

9500

900

UCE-UWT152000 P4

171

M18×1.5

15

12

10000

2000

UCE-UWT35100 P8

71

M8×1

35

25

2200

100

UCE-UWT38100 P8

66

M8×1.25

38

40

1200

100

UCE-UWT38200 P4

65

M8×1

38

14

3300

200
