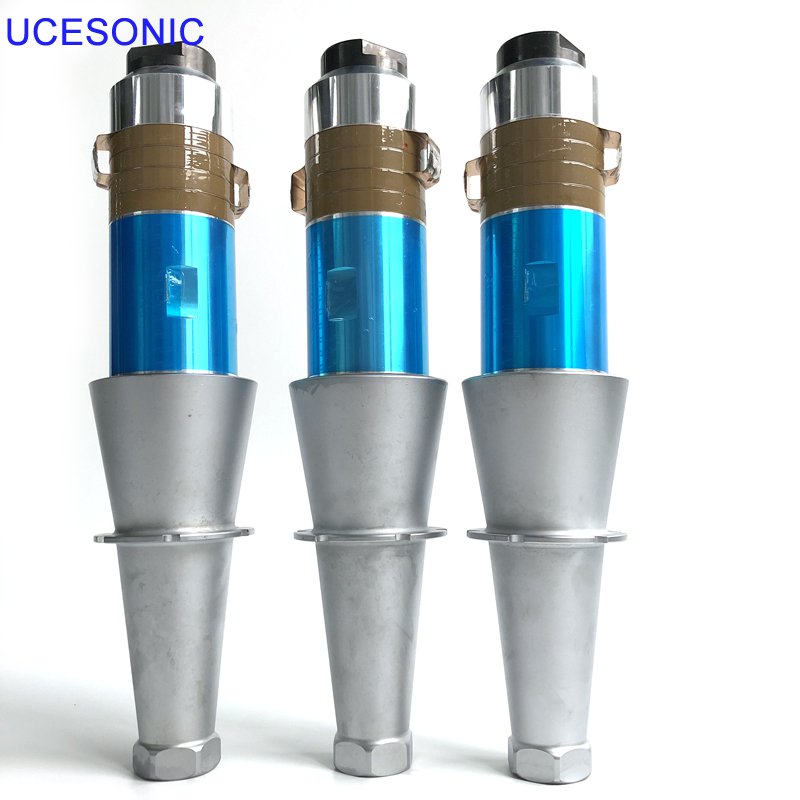

We call the whole of the ultrasonic transducer connected with the horn vibrator. Ultrasound transducer can produce regular vibration under appropriate electric field excitation. Its amplitude is generally about 10 micron. It is not enough to complete welding and processing directly. After connected with a reasonably designed horn, the amplitude of the ultrasonic wave can vary in a wide range. As long as the material strength is enough, the amplitude can exceed 100 microns. On the other hand, when the horn is in longitudinal expansion vibration, the motion direction of the particles on the left and right sides of a cross section in the middle of the horn is just opposite, which is equivalent to the existence of a relatively static joint. This node is called node, which is also the best fixed point of the oscillator. Deviation from the fixed node will reduce the working efficiency of the oscillator, commonly known as leakage wave. Generally speaking, the sound transmission efficiency of aluminium horn is high, but its material strength is low, it is easy to crack and screw hole slide; the strength of steel horn is high, but its acoustic impedance is relatively large; the comprehensive performance of titanium alloy horn is good, but its disadvantage is high price and difficult processing.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
