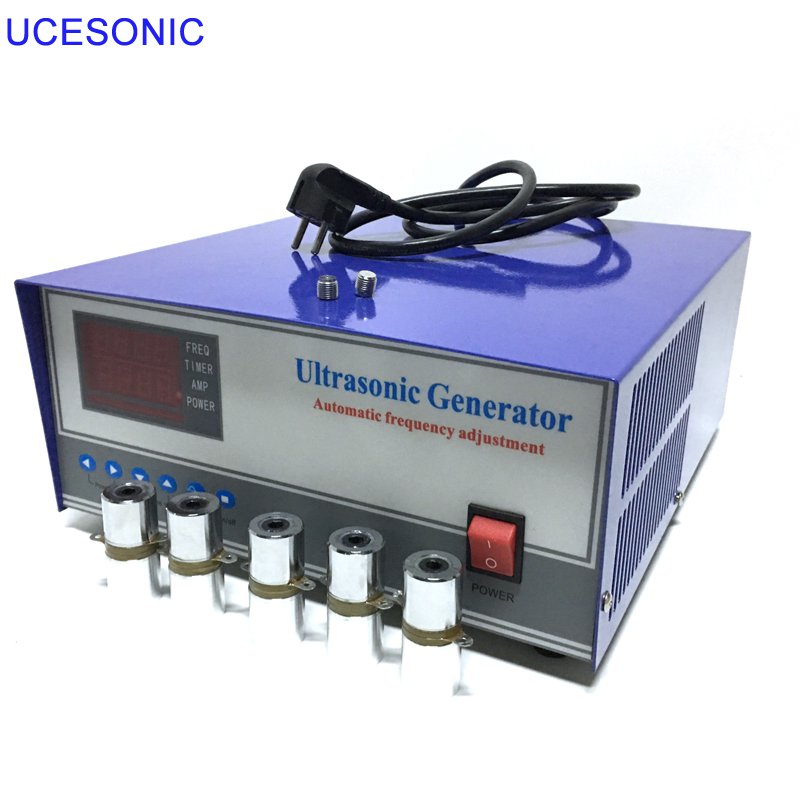

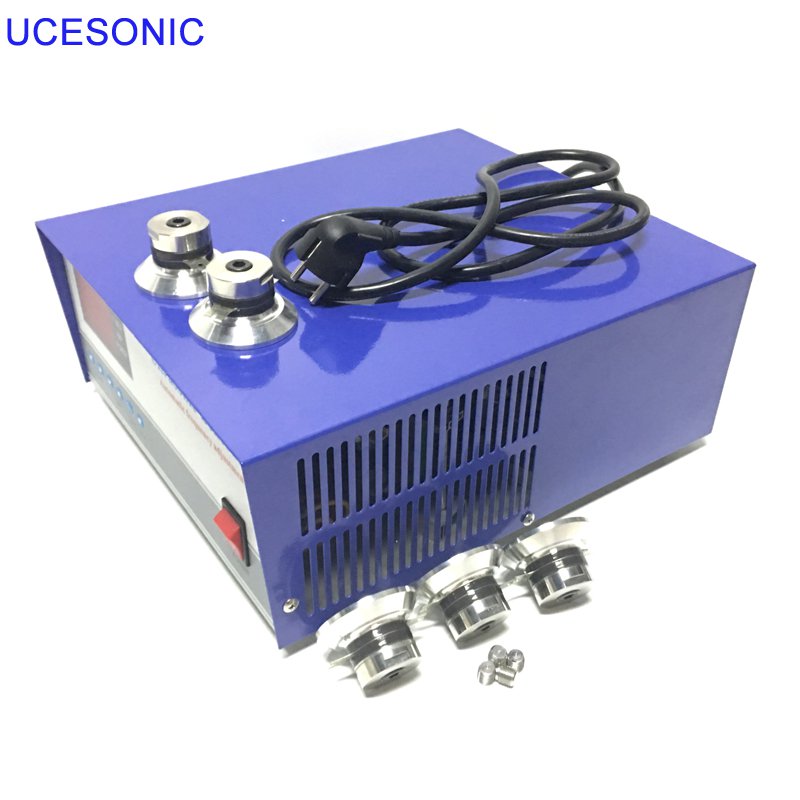

Digital ultrasonic transducer Generator for cleaner

2019-05-22 14:39 admin
Digital ultrasonic transducer Generator for cleaner
The matching circuit of ultrasonic power supply includes output transformer, inductor and transducer. The circuit isolates the amplified high-voltage signal from the output transformer and excites the series (parallel) resonant circuit composed of resonant inductor and ultrasonic transducer to make it resonant. The electric energy is most effectively converted into mechanical energy to achieve the purpose of ultrasonic cleaning.

Characteristics of Generator Power Supply

1. Sweeping function: Sweeping circuit in the international market to effectively protect the shock plate;
2. All IGBT power output components are imported devices, which have the advantages of small size, high power and fast response.
3. Power transistor: imported Toshiba 90A/1200V imported pipe, to eliminate the possibility of burning pipe;
4. Unique sealing and anti-corrosion technology to ensure long-term stable and reliable operation of internal circuit boards;
5. The output power of its excitation control circuit is over 97%, which greatly improves the ultrasonic cavitation density.
6. The output current is sinusoidal wave, which can prolong the service life of transducer and generator itself.
7. Wide range matching frequency: 20KHZ-42KHZ adjustable, suitable for all kinds of transducers (factory settings);
8. Constant output design, small output current ripple, more stable output, protect transducer from damage;
9. Output over-current and short-circuit protection can protect generator power tube.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
Digital ultrasonic transducer Generator for cleanerDigital ultrasonic transducer Generator for cleaner

Digital ultrasonic transducer Generator for cleaner
