Ultrasound Driving Power Supply 28khz/40khz for cleaning

2019-05-21 11:17 admin

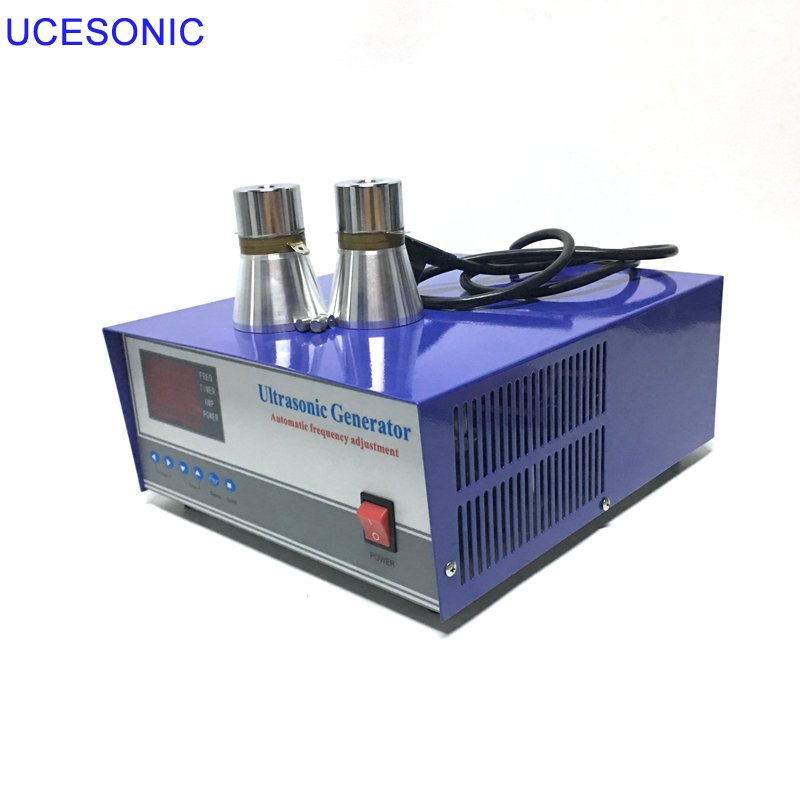

Ultrasound Driving Power Supply 28khz/40khz for cleaning
Compared with the traditional self-excitation control technology, the generator has the advantages of small size, light weight, strong power, stable and reliable operation, continuous adjustable power, flexible control and so on. It has been recognized by many experts. Frequency tracking ensures that the machine is in the best working state from beginning to end. It can maximize the potential of the ultrasonic transducer. It also has perfect protection functions: overcurrent protection, overheat protection and output short circuit protection.

ultrasound generator is assembled with high quality electronic components

2. Advanced and reliable protection circuit mode greatly improves the reliability of the whole machine.
3. Frequency modulation and frequency automatic compensation, frequency digital display
4. Frequency deviation, double-meter indication and protection function of working current
5. Interface plugs can be used according to customer's requirements.
6. Simple structure, easy maintenance, low price and good quality

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

Ultrasound Driving Power Supply 28khz/40khz for cleaningUltrasound Driving Power Supply 28khz/40khz for cleaning

Ultrasound Driving Power Supply 28khz/40khz for cleaning
