build ultrasonic sound generator for cleaning tank

2019-05-22 13:32 admin
build ultrasonic sound generator for cleaning tank

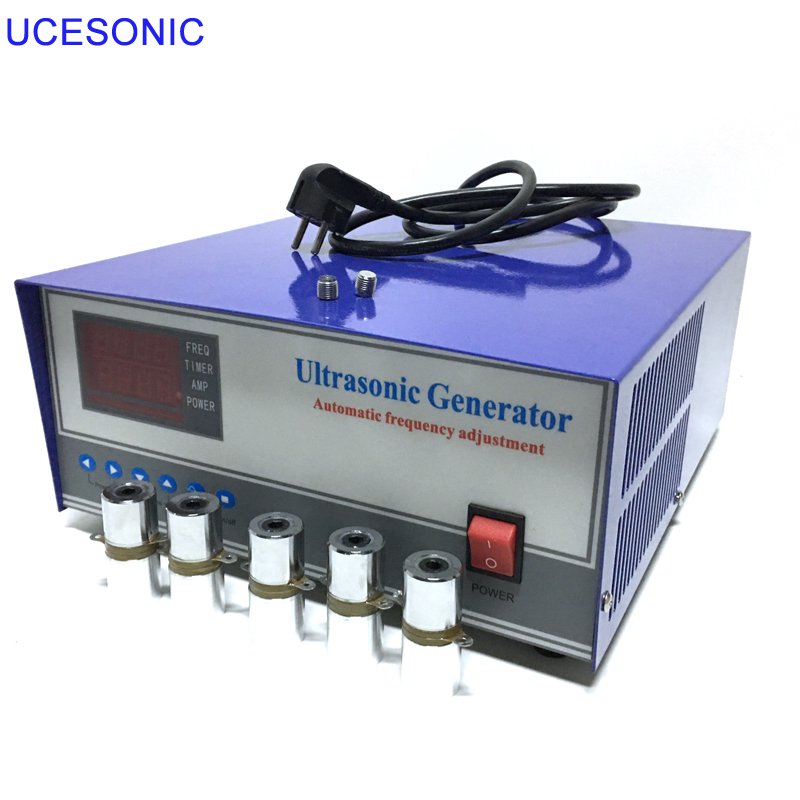

Characteristics of ultrasonic generator equipment:

(1) It has timing function, which can achieve timing function for ultrasonic cleaning for 60 minutes;
(2) It has the function of frequency sweeping and frequency tracking, realizes frequency sweeping and frequency automatic tracking;
(3) Digital display of ultrasonic frequency or output power, more specific and intuitive, convenient to observe and record data;
(4) It has the functions of over-voltage, over-current and over-heat protection to prevent tube burning and reduce generator damage;
(5) The output effective power is over 98%.
(6) Important components are all imported electronic components.
(7) External PLC control switch, remote control can be added.
(8) The power and frequency of ultrasonic wave can be continuously adjusted.
(9) Full touch buttons, humanized design;
(10) Constant power output stabilization technology, constant output power is not affected by load, protect equipment.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
