power supply for ultrasonic transducer 28khz/40khz

2019-05-22 13:35 admin

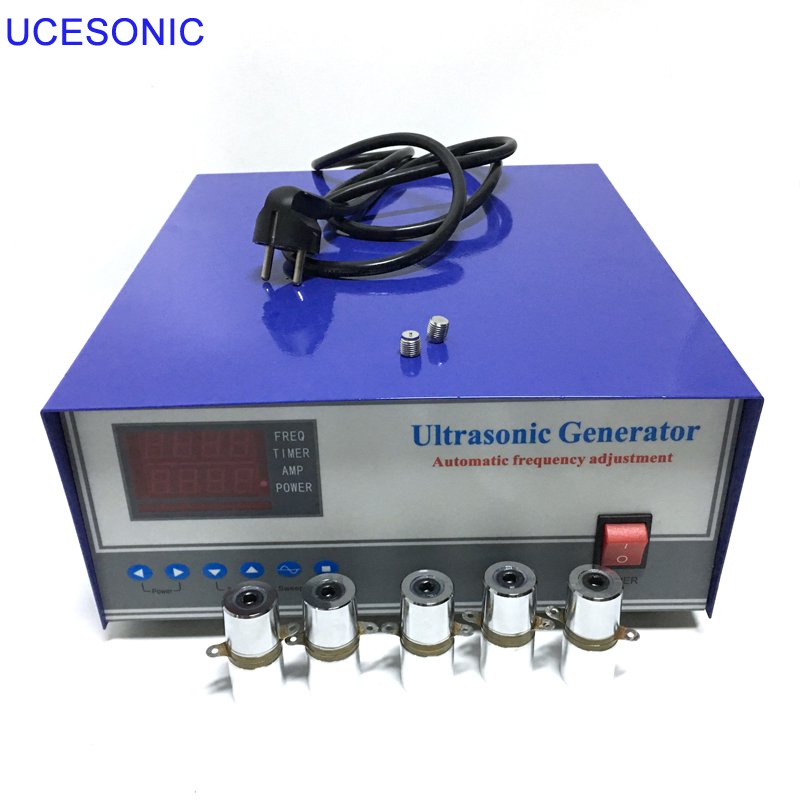

power supply for ultrasonic transducer 28khz/40khz
ultrasonic generator mainly adopts digital modular technology, which can meet the requirements of any precise cleaning. Whether connected with single groove, vibration plate or large cleaning system, it can provide fast, uniform and high quality cleaning effect.

1. LED and LCD display, intuitively grasp the working state of the whole machine.
2. Automatic frequency tracking, phase angle control, high output efficiency and stability. Even if the impedance changes due to the change of the temperature, depth, type, cleaning material, negative pressure state of the liquid, and even the voltage of the power supply changes, stable power can be supplied.
3. The output power can be adjusted and the cleaning time can be set arbitrarily to meet the needs of different products.
4. Frequency scanning can choose different bandwidth and scanning frequency to eliminate standing wave, improve the energy distribution of ultrasound and eliminate the cleaning blind area.
5. High-voltage and low-voltage circuits are completely isolated, safe and anti-jamming.
6. Efficient and unique cooling duct, anti-corrosion design, long-term work in humid and corrosive environment.
7. Safety protection, when transducer abnormal (short circuit or open circuit), excessive output power abnormal, abnormal temperature rise, will automatically stop protection.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
