sweep frequency ultrasonic generator for bath

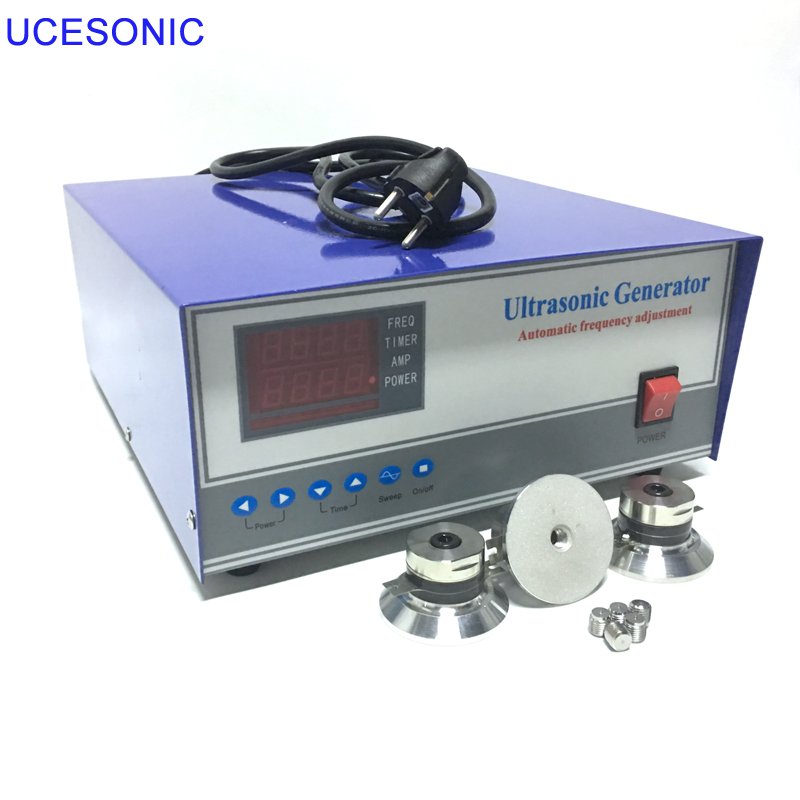

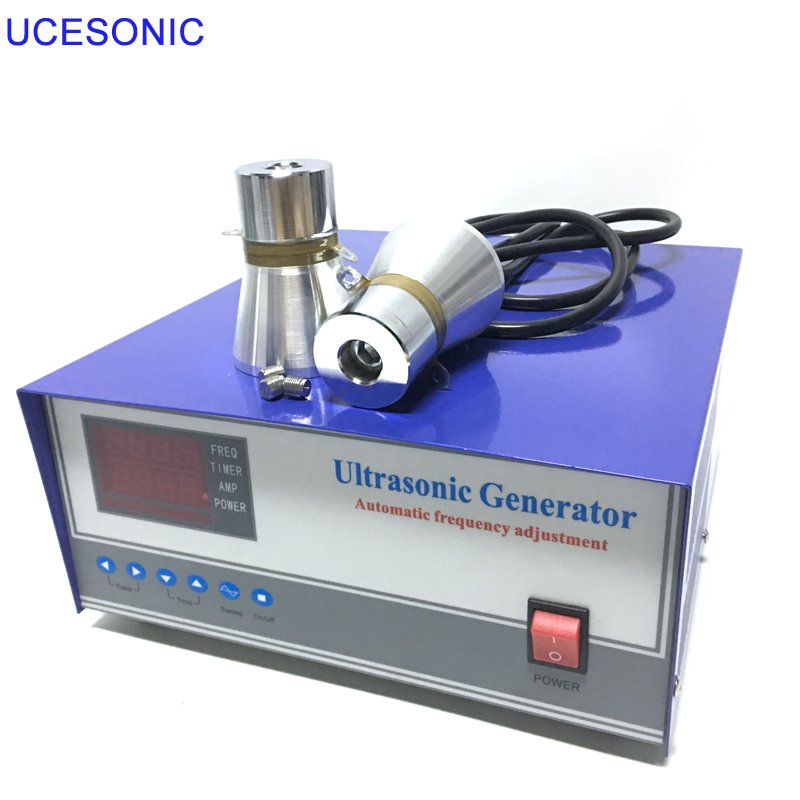

Ultrasonic generator is the latest high-power ultrasonic transducer (digital) driver developed by our company. Embedded system is used as the control core, and high-power M05 tube is used as the output driver. It has high precision, avoids external interference and operates stably. In addition to all the requirements of high reliability, long life, input and output characteristics, high insulation safety, electromagnetic compatibility and noise tolerance of general electronic products, the functions of power regulation, sweep frequency, automatic frequency tracking, alarm, timing, temperature control and remote control required for transducer matching are all available.

· Adjustable output rate: Smooth linear adjustment of output power, adjustable from 20% to 100%.

· Sweep frequency: different sweep frequency can be set, sweep width is 20%~100%.

· Alarm: Overcurrent, Overheat, Output Underwork, Output Open Circuit, Output Frequency Drift, Telecontrol Communication Overtime

· Timing: It can set the timed operation of the ultrasonic generator and the timed range (1S~9999S)

· Temperature control (optional): Acquisition of the temperature of the ultrasonic tank, control the heater by relay, maintain the temperature of the tank to change in the range of set temperature (+2 C)

· Remote control: Provide RS485 interface, remote control panel, can achieve power, timing, temperature and other remote settings, fault display, switch control;

· Energy control: control the constant power output of the ultrasonic transducer;

· Frequency, power and corresponding state can be displayed when working.

· Multilingual interface, communication function and interface with PC.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
