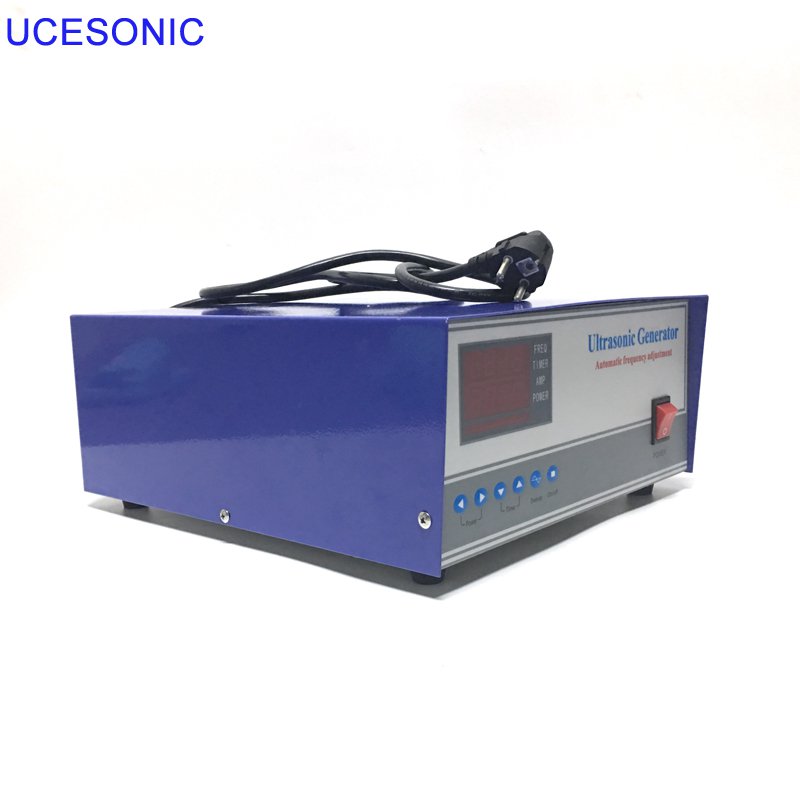

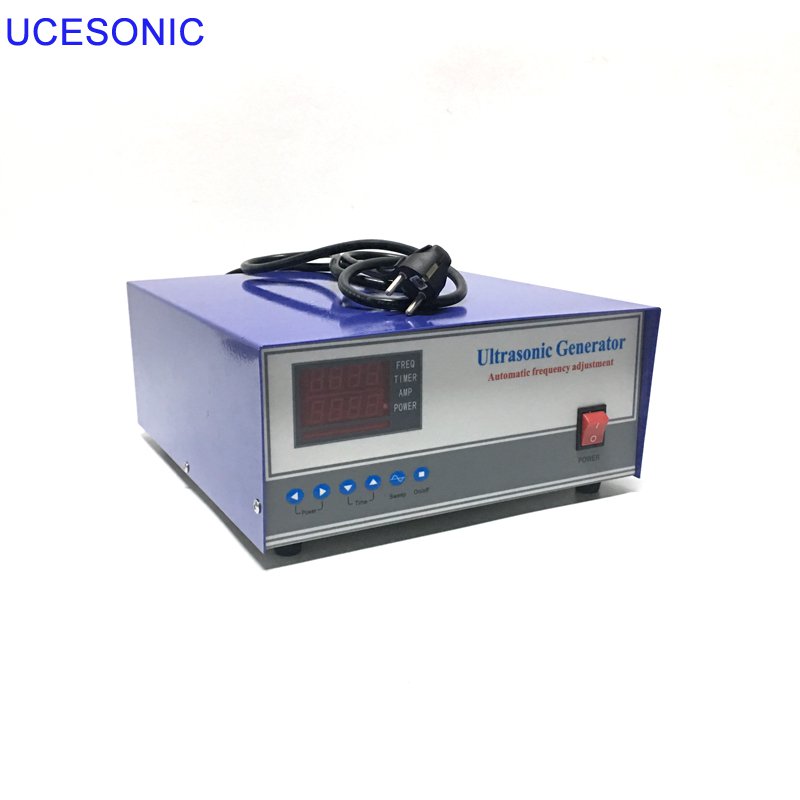

frequency sweep ultrasonic generator for cleaning

2019-05-23 13:41 admin
frequency sweep ultrasonic generator for cleaning
An ultrasonic generator includes a rectifier filter circuit, an inverter unit, a matching circuit and a transducer connected sequentially, and also an oscillation and driving circuit for outputting control signals to the power switch tube in the inverter circuit. It also includes a control unit, which detects the current input to the rectifier filter circuit and outputs it to the control unit. A current detection circuit of a current detection signal; a first digital potentiometer connected with the output terminal of the frequency tracking signal of the control unit and outputting a frequency regulation signal to the oscillation and driving circuit; and an input key connected with the control unit.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
frequency sweep ultrasonic generator for cleaningfrequency sweep ultrasonic generator for cleaning

frequency sweep ultrasonic generator for cleaning

Original address:https://www.ultra-piezo.com/news/ultrasound-generator/frequency-sweep-ultrasonic-generator-for-cleaning.html

author:UCESONIC

TAG ultrasonic： frequency sweep ultrasonic washer generator frequency sweep ultrasonic cleaning generator frequency sweep ultrasonic cleaner generator
