ultrasonic generator with sweep function

2019-05-20 12:00 admin

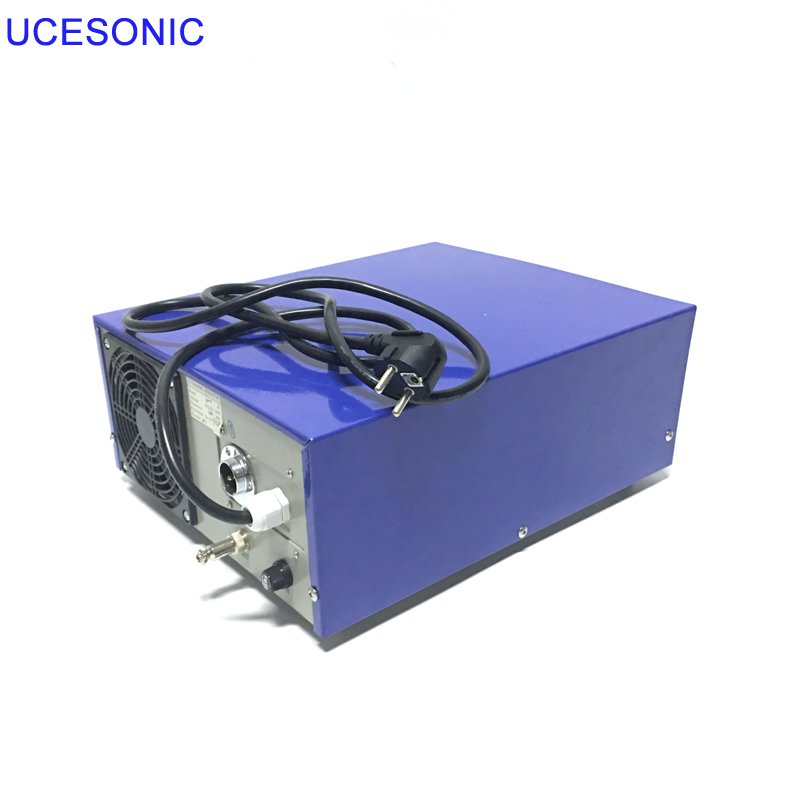

ultrasonic generator with sweep function
The oscillating signal with frequency higher than 20 KH is amplified by an ultrasonic generator, and the sound radiation through a clear medium is amplified by vibration. Cavitation effect occurs when the molecule of cleaning fluid vibrates and produces numerous tiny bubbles and generates thousands of atmospheric pressure on the surface of the object. The dirt attached to the surface is automatically peeled off. All-round cleaning without dead angle is incomparable with other cleaning methods. And do not destroy the workpiece surface.

ultrasonic cleanding generator advantages:

Good cleaning effect, high cleanliness and uniform cleanliness of all workpieces
_Cleaning speed is fast and production efficiency is improved
_No need to touch the cleaning fluid by hand, and clean the deep holes, slits and concealed parts safely and reliably.
_No damage to workpiece surface
_Save solvent, heat energy, work site and man-made, etc.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

ultrasonic generator with sweep functionultrasonic generator with sweep function

ultrasonic generator with sweep function

Original address:https://www.ultra-piezo.com/news/ultrasound-generator/ultrasonic-generator-with-sweep-function.html

author:UCESONIC

TAG ultrasonic： Sweep Frequency Ultrasonic Systems ultrasonic sweep generator Sweep-Frequency Generator
