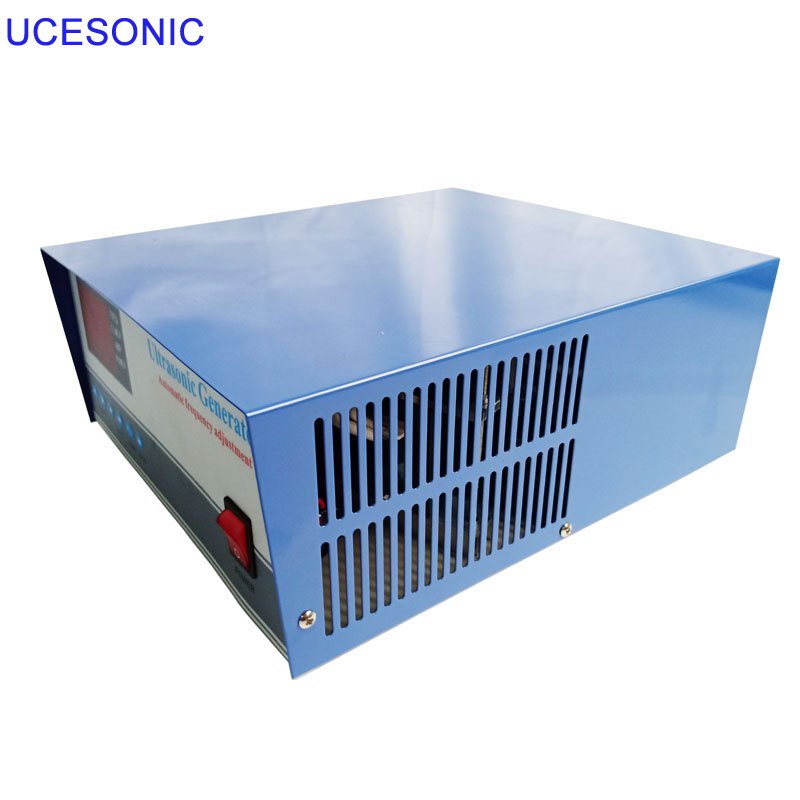

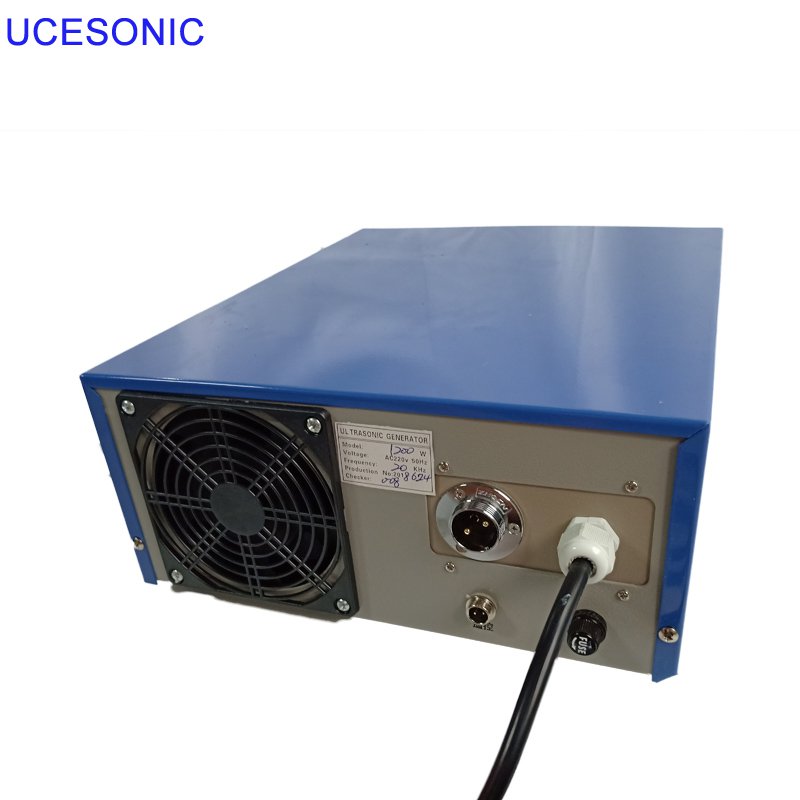

ultrasonic power generator box for frequency cleaning

2019-05-25 11:14 admin

ultrasonic power generator box for frequency cleaning

Design of ultrasonic power source. The design of DDS signal generation circuit, MCU control circuit, power amplifier circuit and matching between ultrasonic power source and ultrasonic transducer are introduced in detail, and the design scheme of system software is given.

Easier operation and maintenance

1. LED and LCD display windows intuitively grasp the working status of the whole machine.

2. The output power can be adjusted, the cleaning time can be set arbitrarily, and the frequency can be adjusted to meet the needs of different products cleaning.

3. ultrasonic generators with different frequencies, power and functions can be designed and manufactured according to customers'requirements. External remote control system can be used to operate the process flow through the network.

4. Set up time display control, power display adjustable, frequency adjustable and other functions.

5. Without professional personnel, it can be maintained by itself and operated simply. Jameson Company provides technical support for life.

Longer life

1. Efficient and unique cooling duct, anti-corrosion design, suitable for long-term work in humid and corrosive environment.

2. When the transducer is abnormal, the power output is abnormal, and the temperature is abnormal, the automatic shutdown protection will greatly prolong the service life.

3. Imported high-quality components from the United States and Japan are shock-resistant and stable in output.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
