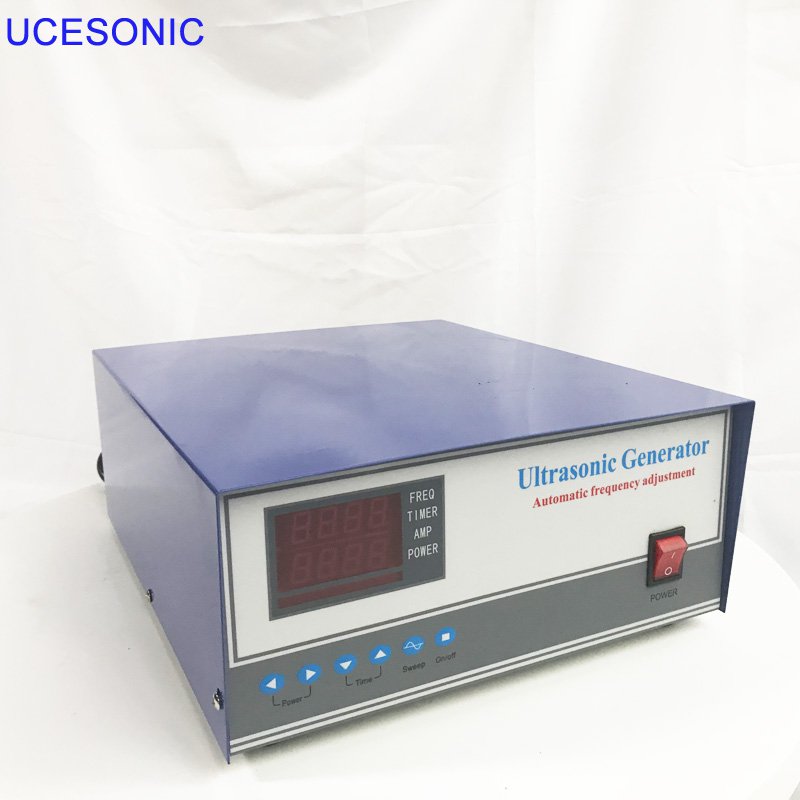

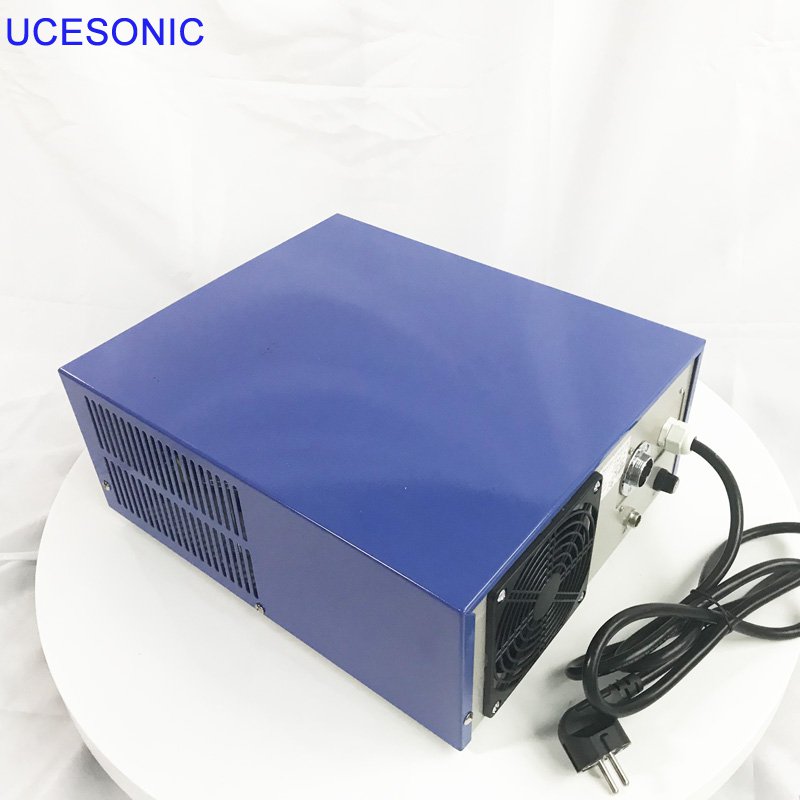

Electronic Box Ultrasound Generator for cleaning transducer

2019-05-25 11:15 admin
Electronic Box Ultrasound Generator for cleaning transducer
The digital high-power multi-purpose ultrasonic power supply system mainly consists of computer digital processing, broadband frequency selective signal source, driving circuit, frequency automatic tracking, fast protection, impedance matching, display board and keyboard to form a friendly interface for man-machine conversation. It can drive up to 16 drive circuit boards (extension boards) with a maximum power of 32 kW. When used, the output transformer and inductance are connected with the ultrasonic transducer. The size of the magnetic core, winding parameters and turn ratio of the output transformer, the size of the magnetic core of the inductance and the winding parameters should be matched with the electrical parameters and connection mode of the ultrasonic transducer, so as to make it more versatile. The power supply system can be used as power supply for ultrasonic cleaning equipment, ultrasonic emulsifying equipment, ultrasonic extraction equipment, ultrasonic welding equipment and ultrasonic wastewater treatment equipment.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
Electronic Box Ultrasound Generator for cleaning transducerElectronic Box Ultrasound Generator for cleaning transducer
