Ultrasonic Transducer Vibration Board and generator

2019-06-25 11:04 admin

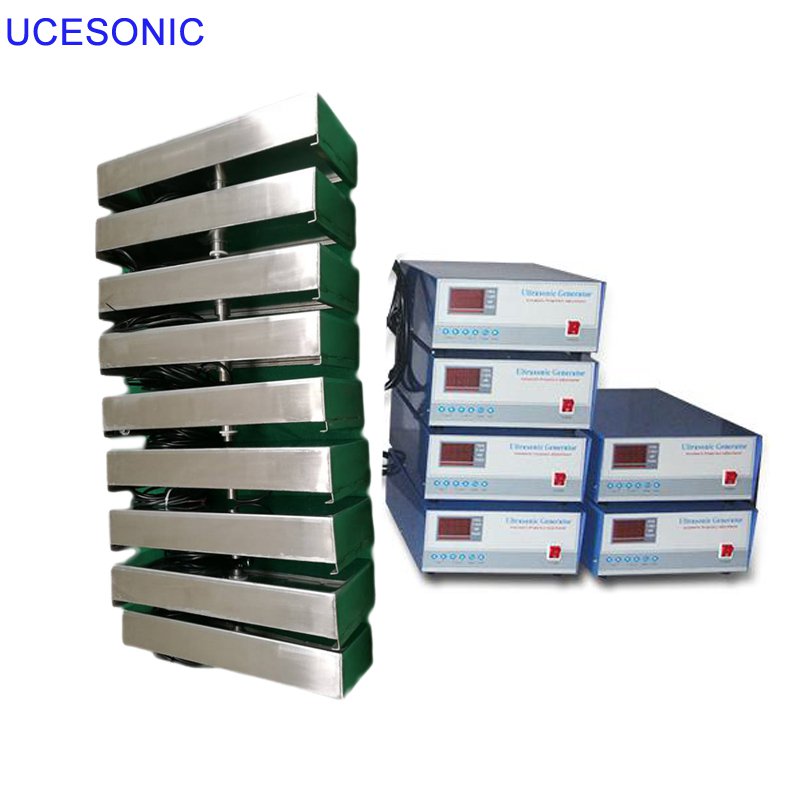

Ultrasonic Transducer Vibration Board and generator
When the ordinary trough cleaning machine is not suitable for some specific working occasions, the submerged ultrasonic vibration plate can be selected. Immersed vibration plate can be designed into different shapes and sizes according to customer requirements. It adopts ** stainless steel sealed welding, acid and alkali resistance, corrosion resistance, easy disassembly and assembly, and easy maintenance.

_All stainless steel structure, acid and alkali resistance, beautiful and durable, strong acid and strong alkali titanium plate, reinforcement and encrypted welding;
_Thickened stainless steel welding, good sealing performance;
American high Q oscillator with strong ultrasonic power;
_The ultrasonic generator and the vibration plate are connected by separate high frequency wire, which is convenient for maintenance.
_24 hours continuous work to adapt to mass production. technical specifications
Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
UCE-UITP300W 300*190*100 25,28,33,40,80,130 300 6
UCE-UITP600W 360*275*100 25,28,33,40,80,130 600 12
UCE-UITP1000W 450*350*100 25,28,33,40,80,130 1000 20
UCE-UITP1200W 470*380*100 25,28,33,40,80,130 1200 24
UCE-UITP1500W 520*450*100 25,28,33,40,80,130 1500 30
UCE-UITP1800W 560*450*100 25,28,33,40,80,130 1800 36
UCE-UITP2000W 650*450*100 25,28,33,40,80,130 2000 40
UCE-UITP2400W 740*520*100 25,28,33,40,80,130 2400 48
UCE-UITP3000W 820*540*100 25,28,33,40,80,130 3000 60
UCE-UITP5000W 1200*590*100 25,28,33,40,80,130 5000 100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
Ultrasonic Transducer Vibration Board and generator

Ultrasonic Transducer Vibration Board and generator
