power ultrasonic transducers with vibrating plate radiators
The ultrasonic vibration plate is not only suitable for self-built cleaning tank or existing cleaning tank with ultrasonic cleaning function, but also suitable for the repair and replacement of existing ultrasonic vibration plate of ultrasonic cleaning equipment, the installation of ultrasonic vibration plate in large-scale
ultrasonic cleaning machine system, and also suitable for the installation of ultrasonic extraction equipment and ultrasonic sewage treatment equipment. The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side and bottom) to achieve different cleaning effects. Ultrasound vibration plate (vibration plate) is generally customized according to user needs and actual working conditions.
The ultrasonic vibration plate made of special technology and material has the characteristics of high stability and long service life, as follows:
1. Transducers specially designed and manufactured have excellent performance and consistency. The efficiency of small signal electro-acoustic conversion can reach more than 96%.
2. The gluing process of the first-class transducer and the monitoring range board of the bottom cell phone card monitor can ensure that there is no degumming concern and the sound wave transmission path is smooth.
3. Excellent high temperature resistance enables the vibrating plate to work stably in boiling water at 100 C for a long time.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |

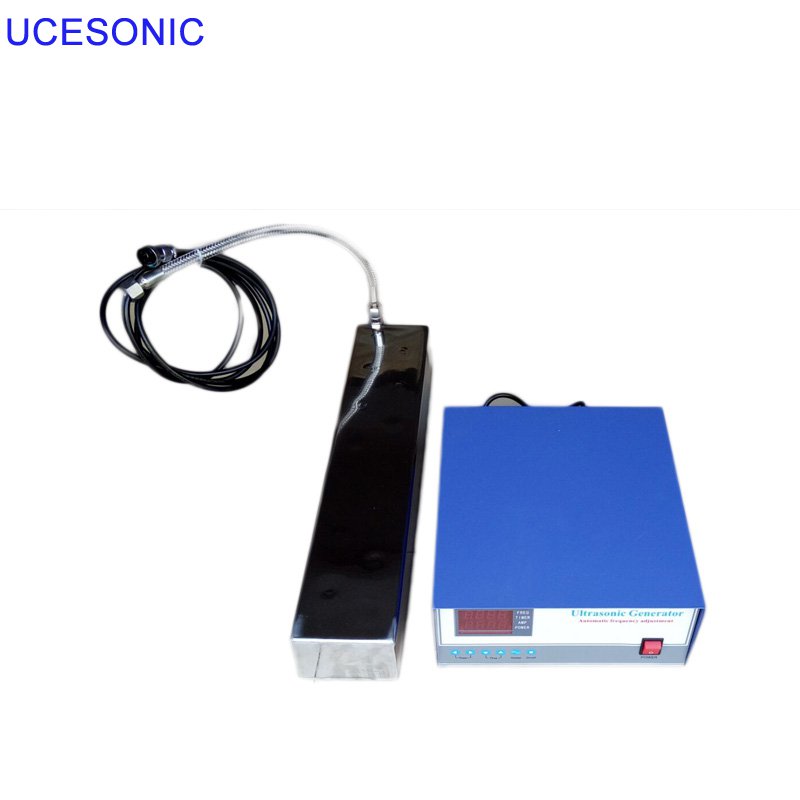

OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
