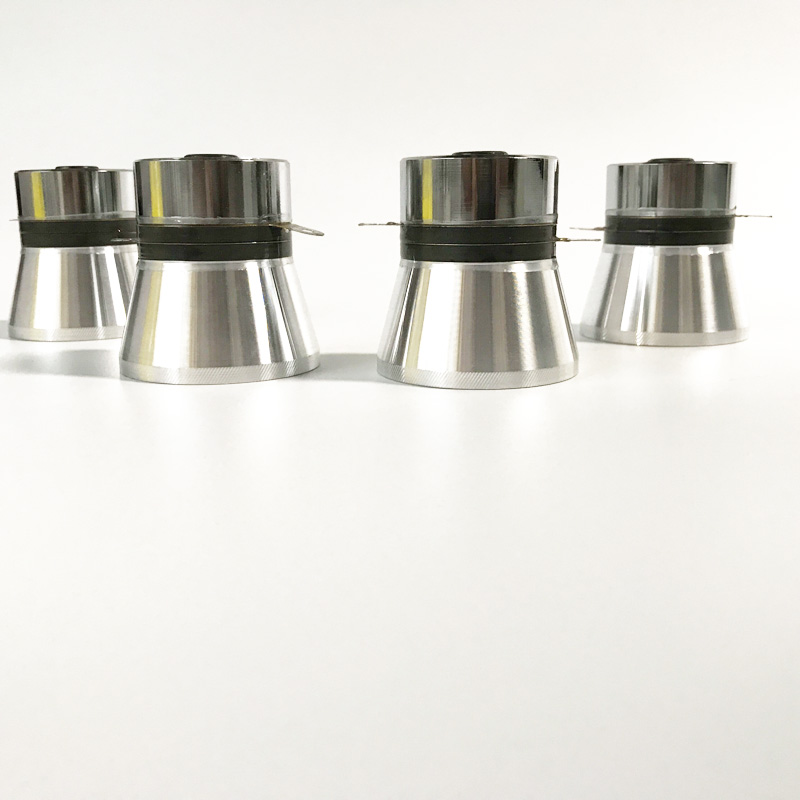

30khz ultrasonic transducer for cleaning equipment

Ultrasonic vibrator, also known as ultrasonic vibrator, ultrasonic vibrator, is a kind of ultrasonic transducer, is the core component of ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, belongs to piezoelectric ceramic materials, ultrasonic cleaning machine one of the main accessories. According to the power, the single ultrasonic vibration head is 60W and 100W. The frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher; the shapes are: straight column, trumpet, etc.


Characteristics of ultrasonic vibrators:

1. High performance: high mechanical Q value, high conversion efficiency, excellent quality; 2. ultrasonic vibrator transducer, large amplitude, superior performance; 3. ultrasonic vibrator transducer, heat resistance: piezoelectric ceramic material heat resistance, can expand the use of temperature range, at the same time, high Q value, low resonance impedance, low calorific value; 4. The wave oscillator transducer has a neat appearance, no rust, no obvious dents and scratches.


Ultrasonic vibration head installation process:

1. Preparatory Tools: Argon arc welding, No. 10 hexagonal wrench, ferrochrome wire, 2.5 square high temperature wire, 2*2.5 cable, vibrator glue, (stripping pliers, bushing, strapping, sand blasting machine, pipe fittings, etc.). 2. Welding screws: Calculate the placement of the vibrator, weld the screw in the cleared position, then clean the screw around, make sure it is smooth, so as not to affect the installation of the vibrator. Three, glue configuration: the glue should be evenly mixed according to the prescribed proportion. (Mei Rui, Ai Da Da, 4030 glue before mixing, KMD398 glue mixed in the bonding process). 4. Installing vibrator: Apply glue evenly to the bottom of ultrasonic vibrator, squeeze out air and excess glue between the bottom of transducer and the contact surface of cylinder bottom by gently twisting, so that the vibrator is tighter and stainless steel is combined as a whole. Fifth, solidification condensation: put in a relatively high room temperature place solidification, 4-8 hours can be connected, 24 hours after power-on test machine, test machine absolutely not allow air vibration. Note: 1. Metal seed nail machine can also replace argon arc welding. 2, welding screws must be fully welded, otherwise easy to fall off. 3. Regarding solidification, the time should consider the temperature, the temperature is low, the time is long, the temperature is high, it is faster, it is recommended to operate at room temperature, even if the heating should not be overheated, the appropriate best.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
