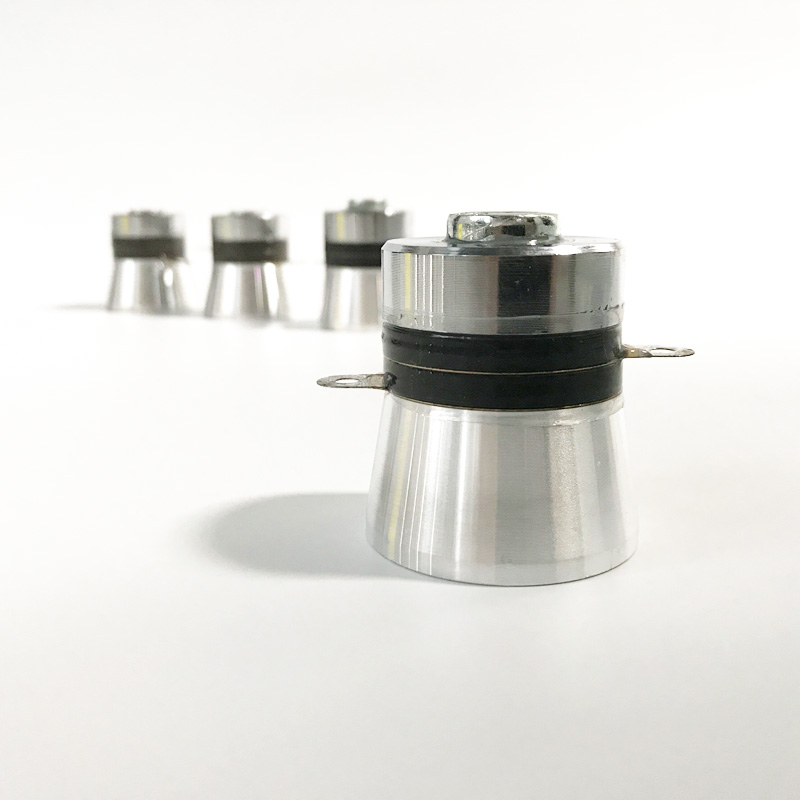

35khz ultrasonic transducer for frequency cleaning machine

Ultrasonic vibrator, also known as ultrasonic vibrator, ultrasonic vibrator, is a kind of ultrasonic transducer, ultrasonic cleaning machine is the core component, we connect the ultrasonic transducer and horn after the whole called vibrator.

Characteristics of ultrasonic vibrators:

I. high performance: high mechanical Q value, high conversion efficiency and excellent quality.

Two, the ultrasonic transducer has large amplitude and excellent performance.

3. Heat resistance of ultrasonic vibrator transducer: piezoelectric ceramic material has good heat resistance, can expand the temperature range, at the same time, Q value is high, resonance impedance is small, calorific value is small;

Four. The ultrasonic transducer transducer has a neat appearance, no rust, no obvious dents and scratches.

Supply Frequency 17KHZ/20KHZ/22KHZ/25KHZ/28KHZ/33KHZ/40KHZ/53KHZ/60KHZ/80KHZ/100KHZ/120KHZ/200KHZ Cleaning Vibrator, Frequency Selection Reference: Low Frequency Ultrasound (17-50KHZ) is suitable for most of the dirt and cleaning parts with high surface bonding strength occasions, High Frequency Ultrasound (50-200KHZ) is suitable for precision parts cleaning. . In order to achieve better results, low frequency and high frequency ultrasound can be selected simultaneously.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
