ultrasonic cleaning machine for sale

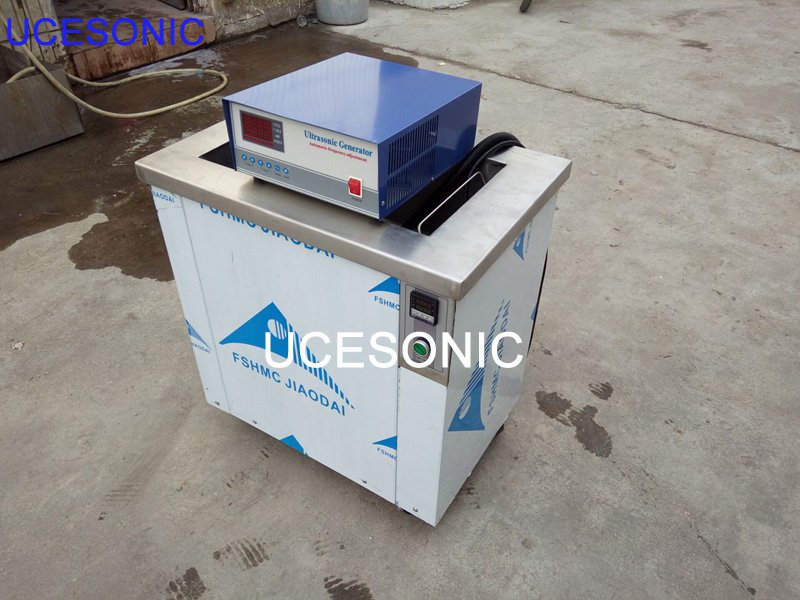

The ultrasonic cleaning machine consists of the following parts:

1) ultrasonic system: transducers and ultrasonic generators.

(1) Transducer: The transducer is fixed by special high-temperature, vibration-resistant and high-viscosity resin glue with special method, which can not fall off and can withstand the high temperature of 100 to 150 degrees.

(2) Ultrasonic generator: High-power ultrasonic generator can be made up of IGBT power electronic device as the main component. This kind of ultrasonic generator has advanced circuit, complete structure, supplemented by sensitive and reliable integrated control system. All kinds of ultrasonic generators can work independently, and they can be used in parallel to complete large-scale cleaning works.

2) heating and temperature control system. The heater is usually made of stainless steel pipes, which is resistant to acid and alkali. The purpose of heating is to heat the cleaning agent to increase the washing effect of the washing machine. Automatic temperature control can be adjusted within a suitable range.

3) Cleaning trough: The cleaning trough is usually made of stainless steel by argon arc welding. The trough body is equipped with slag discharge overhaul port, insulation and sound insulation layer, etc. To ensure that the water level should be at least 200 mm higher than the transducer box.

Ultrasonic cleaning is widely used in surface spraying treatment industry, machinery industry, electronics industry, medical industry, semiconductor industry, Watch Jewelry industry, optical industry, textile printing and dyeing industry. Other industries, and easy to clean ultrasonic cleaning.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)	Total power(W)	voltage
UCE-1006ST	280×210×210	320×250×350	20,28,33,40,80,130	300	1000	1300	220V
UCE-1012ST	400×310×280	520×430×600	20,28,33,40,80,130	600	3000	3600	220V
UCE-1018ST	490×360×320	610×480×675	20,28,33,40,80,130	900	3000	3900	220V
UCE-1024ST	630×430×320	740×550×675	20,28,33,40,80,130	1200	4000	5200	220V
UCE-1030ST	630×530×320	750×650×675	20,28,33,40,80,130	1500	4000	5500	220V
UCE-1036ST	680×530×360	800×650×700	20,28,33,40,80,130	1800	5000	6800	220V
UCE-1040ST	680×570×400	830×710×735	20,28,33,40,80,130	2000	5000	7000	220V
UCE-1041ST	730×570×450	880×710×735	20,28,33,40,80,130	2400	6000	8400	220V
UCE-1042ST	790×670×510	940×765×785	20,28,33,40,80,130	3000	6000	9000	380V
UCE-1043ST	850×770×570	990×820×785	20,28,33,40,80,130	4000	7000	11000	380V
UCE-1044ST	910×820×620	1050×880×840	20,28,33,40,80,130	5000	7000	12000	380V
UCE-1045ST	960×870×680	1100×940×920	20,28,33,40,80,130	8000	8000	16000	380V
UCE-1046ST	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	8000	18000	380V
OEM Ultrasonic Cleaning Mchine（Size, Frequency,Power）-----UCE ultrasonic
