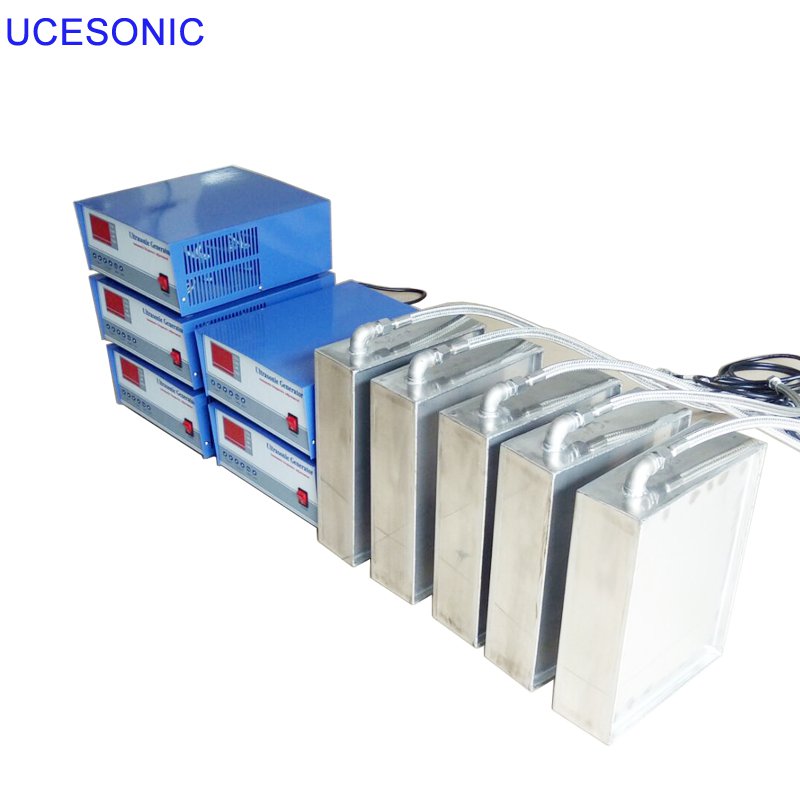

Submersible Ultrasonic Cleaner for Industrial Cleaning

Shock plate of ultrasonic cleaning machine



The ultrasonic vibration plate consists of two parts, an ultrasonic generator and a vibration plate.

Ultrasound Generator: In cooperation with German ultrasonic experts, our company has developed the seventh generation of German ultrasonic control technology. Its power and frequency are in the form of liquid crystal digital display, which can observe the change of power and frequency at any time, providing an accurate basis for controlling and detecting ultrasound. The generator can freely and regularly design the start-stop mode of the generator, and work freely and regularly. The service life of the ultrasonic generator is greatly improved and the energy consumption is greatly reduced.



The ultrasonic vibration plate is mounted by bottom shock type and side suspension type. The bottom is fixed by screw and Teflon film. The side can be directly suspended into the cylinder surface.



Customers can design and produce various types of ultrasonic shock plate according to the size and variety of cleaning workpieces, so as to achieve the cleaning effect of oil removal and wax removal.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
UCE-UITP300W	300*190*100	25,28,33,40,80,130	300	6
UCE-UITP600W	360*275*100	25,28,33,40,80,130	600	12
UCE-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
UCE-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
UCE-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
UCE-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
UCE-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
UCE-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
UCE-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
UCE-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
