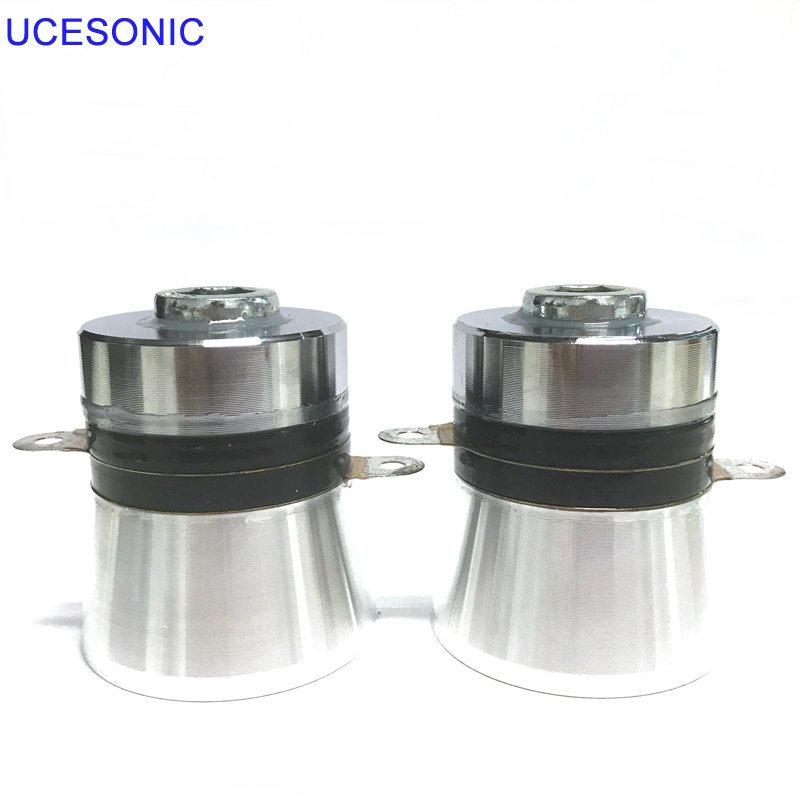

power ultrasonic transducers for ultrasonic cleaner

Installation technology of ultrasonic transducer:

1. Preparatory tools: Argon arc welding, No. 10 inner hexagonal wrench, chrome-iron-tin wire, 2.5 square high temperature wire, 2*2.5 cable line, oscillator glue, (stripping pliers, casing, tie-up, sand blasting machine, pipe fittings, etc.).

2. Welding screw: Calculate the arrangement position of oscillator, weld the screw in the cleared position, and then clean the screw around, make sure it is flat, so as not to affect the installation of oscillator.

3. Glue disposition: A glue is squeezed around the screw, B glue is squeezed next to A glue, and then AB glue is quickly stirred with a small iron bar to make it fully mixed and even.

4. Install the vibration head: Turn the transducer slightly to squeeze out the air and excess glue between the bottom and the contact surface of the cylinder bottom, so that the oscillator is more closely integrated with stainless steel.

Fifth, solidification and condensation: solidification at relatively high room temperature, 4-8 hours wiring, 24 hours after power test machine.

Note: 1. Metal seed nailing machine can also replace argon arc welding.

2. Welding screw must be fully welded, otherwise it is easy to fall off.

3. Regarding curing, the length of time should consider temperature, low temperature for a long time, high temperature for a faster time. It is recommended to operate at room temperature, even if heated, do not overheat, appropriate and best.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
