ultrasonic frequency transducer for cleaning tank

2019-05-31 12:59 admin
ultrasonic frequency transducer for cleaning tank
Ultrasound vibrator, also known as ultrasonic vibrator, ultrasonic vibrator, is a kind of ultrasonic transducer, is the core component of the ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, belongs to piezoelectric ceramic material, one of the main parts of ultrasonic cleaning machine. In terms of power, the single ultrasonic head is 60W and 100W. Frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher respectively; from the shape difference is: straight column, horn, etc.

Principles of arrangement of ultrasonic transducers:
(1) Cleaning different product layout has different requirements, such as the degree of oil contamination, the degree of difficulty in cleaning, the level of cleaning requirements, the design of cleaning process, all require targeted choices.
(2) The arrangement of oscillators is not the more dense the better, the appropriate is the best.
3. Introduction of ultrasonic oscillator:
Type Length（mm） Weight（g） Frequency（KHz） Resonance Impedance
（Ω）		 Static Capacity
（pF）±10%		 Input Power（W）
UCE-UT-20100
PZT-8
 		 94
 		 900
 		 20
 		 10-20
 		 5200
 		 100

UCE-UT-25100
PZT-4		 77
 		 710
 		 25
 		 10-20
 		 6600
 		 100

UCE-UT-28120
PZT-4		 66
 		 720
 		 28
 		 10-20
 		 7800
 		 120

UCE-UT-28100
PZT-8		 66
 		 625
 		 28
 		 10-20
 		 5200
 		 100

UCE-UT-28100
PZT-4		 66
 		 624
 		 28
 		 10-20
 		 6600
 		 100

UCE-UT-30100
PZT-8		 61
 		 555
 		 30
 		 10-20
 		 5200
 		 100

UCE-UT-2560
PZT-4		 77
 		 530
 		 25
 		 10-20
 		 5400
 		 60

UCE-UT-2860
PZT-8		 68
 		 470
 		 28
 		 10-20
 		 3800
 		 60

UCE-UT-2850
PZT-4		 82
 		 425
 		 28
 		 10-20
 		 4100
 		 50

UCE-UT-3360
PZT-8		 58
 		 420
 		 33
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-8		 55
 		 300
 		 40
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-4		 56
 		 310
 		 40
 		 10-20
 		 5400
 		 60

UCE-UT-4050
PZT-4		 54
 		 260
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-4050-1
PZT-4		 57
 		 300
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-5435
PZT-4		 36
 		 135
 		 54
 		 10-20
 		 3200
 		 35

UCE-UT-6860
PZT-8		 80
 		 460
 		 68
 		 10-20
 		 3800
 		 60

UCE-UT-68120
PZT-4		 67
 		 588
 		 68
 		 10-20
 		 7800
 		 120

UCE-UT-8060
PZT-4		 60
 		 325
 		 80
 		 10-20
 		 5400
 		 60

UCE-UT-12060
PZT-4		 56
 		 260
 		 120
 		 10-20
 		 5400
 		 60

UCE-UT-13550
PZT-4		 54
 		 215
 		 135
 		 10-20
 		 4200
 		 50

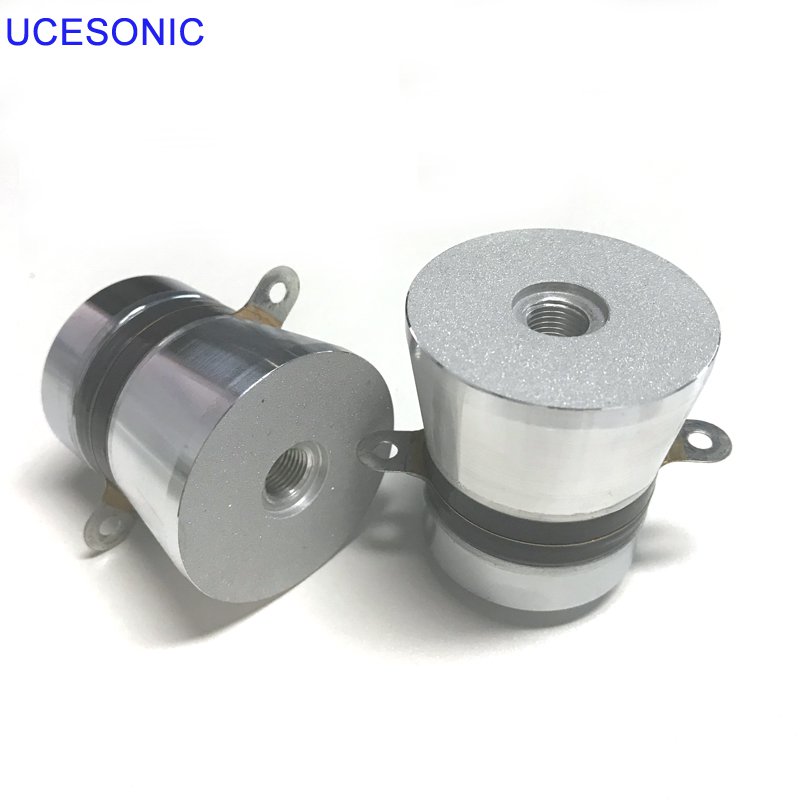

ultrasonic frequency transducer for cleaning tank

ultrasonic frequency transducer for cleaning tank
