40khz ultrasonic cleaner transducer for cleaning tank

2019-05-31 11:42 admin
40khz ultrasonic cleaner transducer for cleaning tank

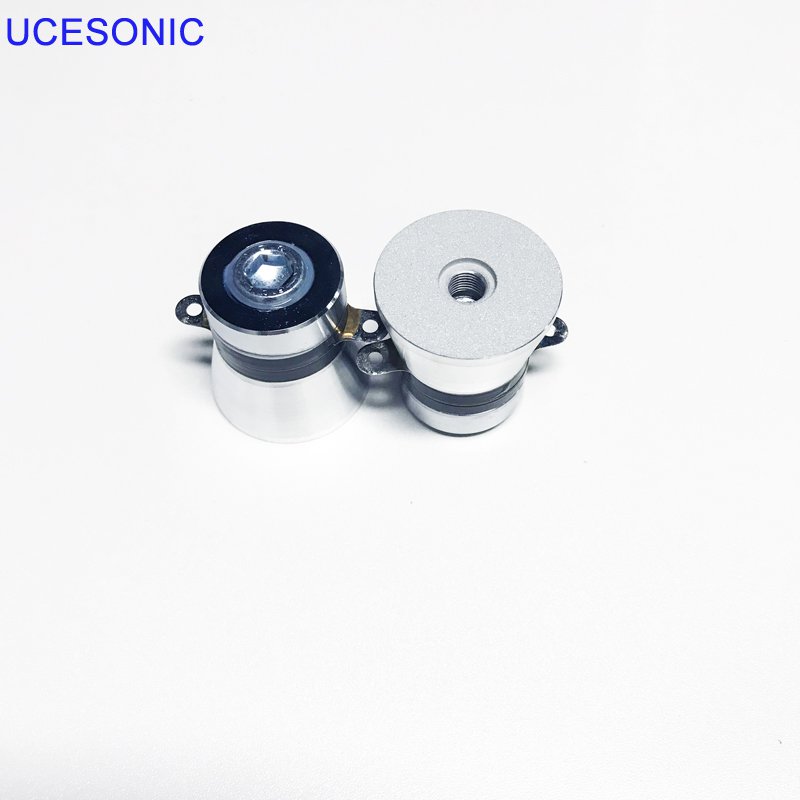

Brief Introduction of Ultrasound Transducer
Ultrasound oscillator, also known as ultrasonic head, is a kind of ultrasonic transducer, is the core component of the ultrasonic cleaning machine. We call the whole of the ultrasonic transducer connected with the horn oscillator. The ultrasonic transducer is one of the most important components in the ultrasonic cleaning machine and the ultrasonic vibration plate, which largely determines the quality of the ultrasonic effect.

Our company provides professional ultrasonic transducers with stable quality, high efficiency and moderate price, based on years of experience in ultrasonic cleaning and combined with the opinions and feedback of users.
Type Length（mm） Weight（g） Frequency（KHz） Resonance Impedance
（Ω）		 Static Capacity
（pF）±10%		 Input Power（W）
UCE-UT-20100
PZT-8
 		 94
 		 900
 		 20
 		 10-20
 		 5200
 		 100

UCE-UT-25100
PZT-4		 77
 		 710
 		 25
 		 10-20
 		 6600
 		 100

UCE-UT-28120
PZT-4		 66
 		 720
 		 28
 		 10-20
 		 7800
 		 120

UCE-UT-28100
PZT-8		 66
 		 625
 		 28
 		 10-20
 		 5200
 		 100

UCE-UT-28100
PZT-4		 66
 		 624
 		 28
 		 10-20
 		 6600
 		 100

UCE-UT-30100
PZT-8		 61
 		 555
 		 30
 		 10-20
 		 5200
 		 100

UCE-UT-2560
PZT-4		 77
 		 530
 		 25
 		 10-20
 		 5400
 		 60

UCE-UT-2860
PZT-8		 68
 		 470
 		 28
 		 10-20
 		 3800
 		 60

UCE-UT-2850
PZT-4		 82
 		 425
 		 28
 		 10-20
 		 4100
 		 50

UCE-UT-3360
PZT-8		 58
 		 420
 		 33
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-8		 55
 		 300
 		 40
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-4		 56
 		 310
 		 40
 		 10-20
 		 5400
 		 60

UCE-UT-4050
PZT-4		 54
 		 260
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-4050-1
PZT-4		 57
 		 300
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-5435
PZT-4		 36
 		 135
 		 54
 		 10-20
 		 3200
 		 35

UCE-UT-6860
PZT-8		 80
 		 460
 		 68
 		 10-20
 		 3800
 		 60

UCE-UT-68120
PZT-4		 67
 		 588
 		 68
 		 10-20
 		 7800
 		 120

UCE-UT-8060
PZT-4		 60
 		 325
 		 80
 		 10-20
 		 5400
 		 60

UCE-UT-12060
PZT-4		 56
 		 260
 		 120
 		 10-20
 		 5400
 		 60

UCE-UT-13550
PZT-4		 54
 		 215
 		 135
 		 10-20
 		 4200
 		 50
