1. the ultrasonic resonance frequency is 15KHZ/20KHZ/35KHZ/40KHZ
2. the ultrasonic output power is 2600W /3500W/4200W/2400W/3000W1000W/800W
3. power requirements are 220V (Dan Xiang).

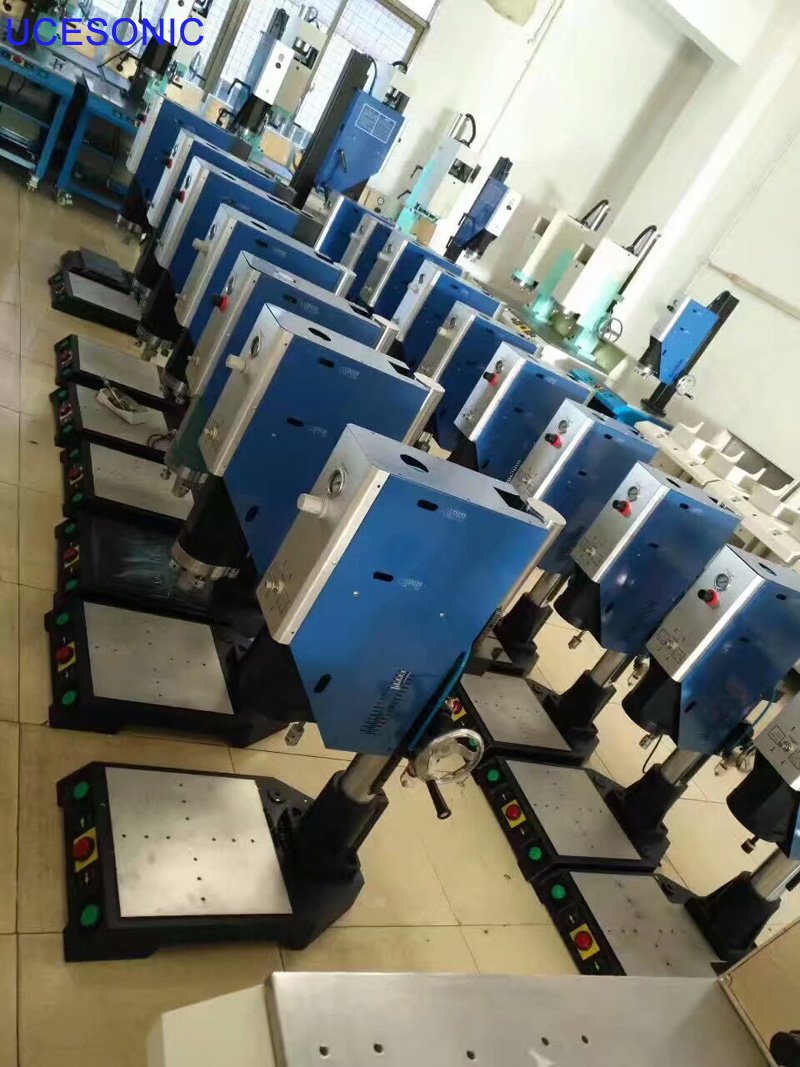

Automatic frequency tracking ultrasonic plastic welding machine characteristics:
1, digital circuit: Ming Pang follows the market development, carries on the upgrading to the
ultrasonic welding machine. The traditional ultrasonic generally uses analog circuit, upgraded by foreign high-grade computer with digital circuit.
2. Time mode: Adopting time welding mode, digital setting time can be input directly, and digital parameter recording with automatic correction function can realize more accurate operation parameter setting.
3. Energy mode: The computer control system is used to detect the useful power of the input transducer, and the energy is used to control the welding, so as to reduce the error caused by the fluctuation of pressure, voltage and other factors, so as to improve the welding quality.
4. Mould-adjusting mode: This mode is used for debugging mold. In order to adjust the welding head and mold to make the corresponding accurate enough, it is necessary to constantly control the rise and fall of the welding head.
5, amplitude adjustable: welding process can be adjusted at any time the amplitude of the amplitude, from 20% to 100%, accurate to 1%. The size and size of the plastic parts can be perfectly welded to effectively reduce the defective products such as burn and scald.
6. Automatic frequency tracking: automatically detect the welding data of machine and mould, and store the frequency of welding.
7. Intelligent protection: power overload, equipment temperature is too high, frequency deviation is too large, load connection line is not firm, welding head damage, high current protection.
8, boot self test: start self check and make relevant hints, prevent bad and convenient maintenance.
9. Welding workpiece shaking: If after welding, the welded workpiece will be raised along with the weld, then you need this function to shake the workpiece attached to the weld. (optional function)
Type |
Power(W) |
Frequency (KHz) |
UCE-UWM600W |
600W |
15KHZ/20KHZ/28KHZ/40KHZ |
UCE-UWM900W |
900W |
15KHZ/20KHZ/28KHZ/40KHZ |
UCE-UWM1000W |
1000W |
15KHZ/20KHZ/28KHZ/30KHZ |
UCE-UWM1500W |
1500W |
15KHZ/20KHZ |
UCE-UWM1800W |
1800W |
15KHZ/20KHZ |
UCE-UWM2000W |
2000W |
15KHZ/20KHZ |
UCE-UWM2600W |
2600W |
15KHZ |
UCE-UWM3200W |
3200W |
15KHZ |
UCE-UWM4200W |
4200W |
15KHZ |
