Plastic Ultrasonic Welding Transducer 20khz 2000W

2019-06-21 10:35 admin
Plastic Ultrasonic Welding Transducer 20khz 2000WOur customers'products: different shapes, different requirements, using imported aluminium alloy materials originally from the United States, beautiful appearance, durability, well received by customers. In addition to the production of plastic welding machine, welding head (HORN), but also

Provide various brands of ultrasonic mold production, the mold designed by our company can be used in various brands of ultrasonic machines better than the original mold, the company has a large number of development and design engineers, salesmen who master advanced technology.

According to the different design of the ultrasonic transducer, the main forms are:

1. Column Type 2. Inverted Horn Type 3 Steel Back Cover Type 4. Aluminum Plate Type in the Middle

It is mainly suitable for ultrasonic plastic welding machine, ultrasonic plastic welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic acoustic chemical equipment, etc.
Type Full-length（mm） Joint Bolt（mm） Frequency（KHz）
 		 Resonance Impedance（Ω）
 		 Capacity（pF）
 		 Input Power
（W）
UCE-UWT152500 P8
 		 153
 		 M20×1.5
 		 15
 		 15
 		 13000
 		 2500

UCE-UWT152000 P8
 		 167
 		 M20×1.5
 		 15
 		 10
 		 9500
 		 2000

UCE-UWT151500 P4
 		 171
 		 M18×1.5
 		 15
 		 12
 		 12500
 		 1500

UCE-UWT151800 P4
 		 118
 		 M20×1.5
 		 20
 		 15
 		 15000
 		 1800

UCE-UWT202000 P8
 		 128
 		 M18×1
 		 20
 		 10
 		 11000
 		 2000

UCE-UWT202000 P8
 		 124
 		 M18×1.5
 		 20
 		 12
 		 10000
 		 1500

UCE-UWT20700 P8
 		 112
 		 1/2-20 UNF
 		 20
 		 15
 		 9000
 		 700

UCE-UWT20900 P8
 		 133
 		 1/2-20 UNF
 		 20
 		 15
 		 10000
 		 900

UCE-UWT20600 P8
 		 121
 		 M18×1.5
 		 20
 		 15
 		 6000
 		 600

UCE-UWT30500 P8
 		 77
 		 M10×1.5
 		 30
 		 5
 		 5500
 		 500

UCE-UWT28200 P4
 		 92.1
 		 M10×1
 		 28
 		 20
 		 3000
 		 200

UCE-UWT28100 P8
 		 91
 		 M8×1
 		 28
 		 25
 		 2200
 		 100

UCE-UWT28250 P8
 		 94
 		 1/2-20 UNF
 		 28
 		 20
 		 4000
 		 250

UCE-UWT202000 P8
 		 128
 		 1/2-20 UNF
 		 20
 		 10
 		 20000
 		 2000

UCE-UWT201500 P8
 		 124
 		 1/2-20 UNF
 		 20
 		 10
 		 16000
 		 1500

UCE-UWT201300 P8
 		 128
 		 1/2-20 UNF
 		 20
 		 10
 		 12500
 		 1300

UCE-UWT201500 P8
 		 132
 		 1/2-20 UNF
 		 20
 		 10
 		 11000
 		 1500

UCE-UWT20900 P8
 		 123
 		 1/2-20 UNF
 		 20
 		 10
 		 9500
 		 900

UCE-UWT152000 P4
 		 171
 		 M18×1.5
 		 15
 		 12
 		 10000
 		 2000

UCE-UWT35100 P8
 		 71
 		 M8×1
 		 35
 		 25
 		 2200
 		 100

UCE-UWT38100 P8
 		 66
 		 M8×1.25
 		 38
 		 40
 		 1200
 		 100

UCE-UWT38200 P4
 		 65
 		 M8×1
 		 38
 		 14
 		 3300
 		 200

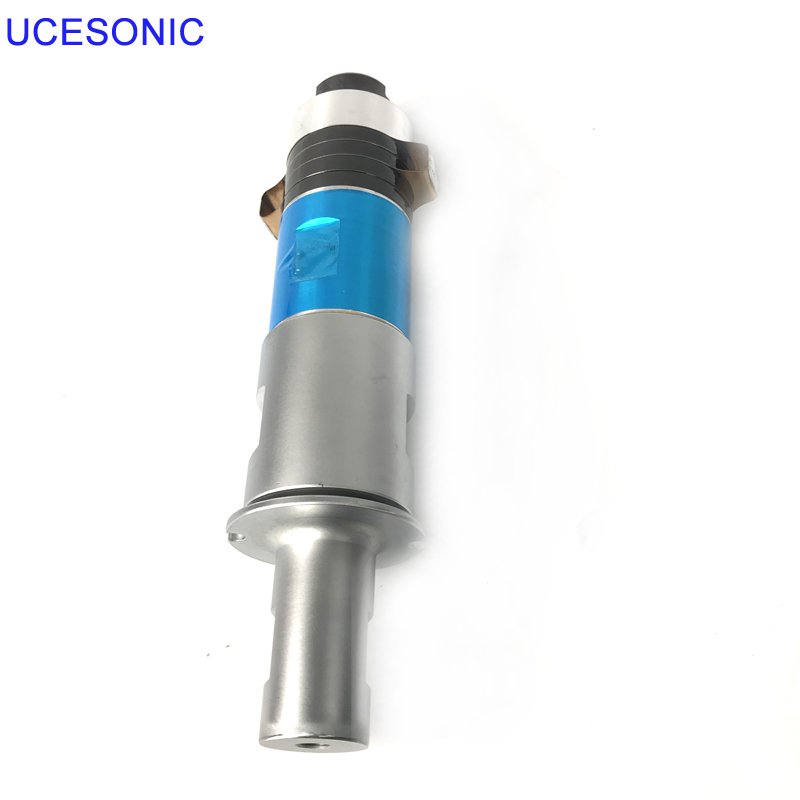

Plastic Ultrasonic Welding Transducer 20khz 2000W

Plastic Ultrasonic Welding Transducer 20khz 2000W
