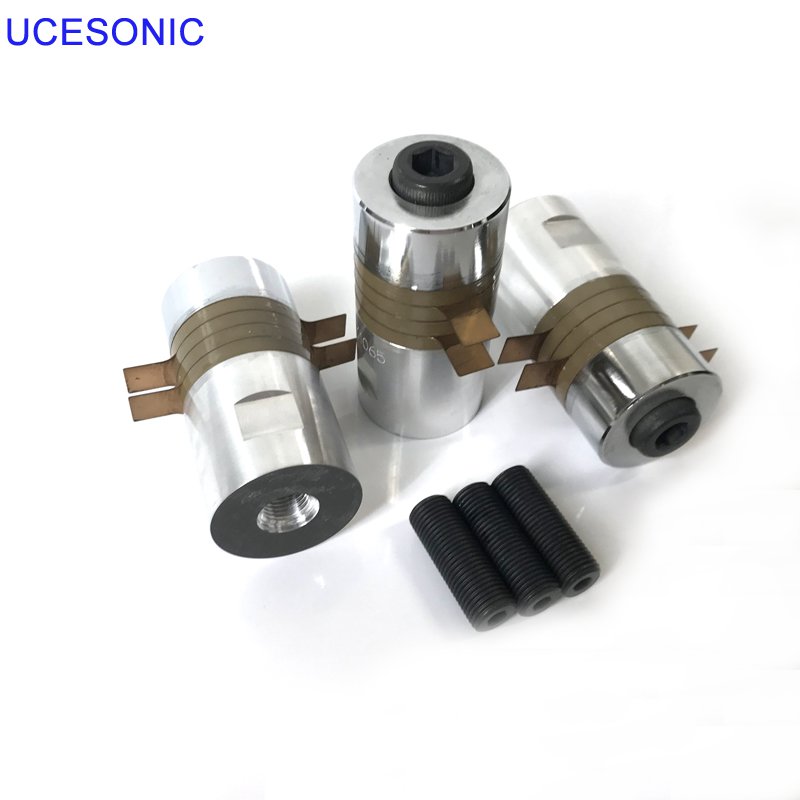

ultrasonic converter 35khz Ultrasonic Welding Converter

ultrasonic converter 35khz Ultrasonic Welding Converter

Ultrasound welding converts 50/60 Hertz current to 15, 20, 30 or 40 through an ultrasonic generator.

KHz power. The converted high frequency electric energy is converted into mechanical operation of the same frequency again through transducers.

The mechanical motion is then transmitted to the welding head through a set of amplitude-changing horn device. Welding head will

The received vibration energy is transmitted to the joint of the workpiece to be welded, where the vibration energy is passed through.

Friction is converted into heat to melt plastics. Ultrasound can not only be used to weld hard thermoplastic plastics

It can also process fabrics and films. The main components of an ultrasonic welding system include an ultrasonic generator.

Generator, transducer/horn/welding head triple set, die and frame. Utilization of Linear Vibration Friction Welding

Friction heat generated at the interface of two workpieces to be welded melts the plastics. Thermal energy comes from a certain pressure.

Under this condition, a workpiece moves back and forth on another surface with a certain displacement or amplitude. Once the expectations are met

At the same time, a certain amount of pressure will still be applied to the two workpieces.

Cooling and solidifying the part that has just been welded to form a tight bond. Track Vibration Friction Welding

Welding is a method of using friction heat energy to weld. When the track vibration friction welding is carried out, the upper part

The workpiece moves in orbit at a fixed speed - circularly in all directions. Exercise can be produced.

Thermal energy makes the welding parts of two plastic parts reach the melting point. Once the plastic begins to melt, the movement stops.

The welding parts of the two workpieces will be solidified and firmly connected. Small clamping force will lead to workpiece

Workpieces with a diameter of less than 10 inches can be rubbed by track vibration with minimal deformation.

Welding.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
