Piezoelectric Digital Ultrasonic Generator Drive

2019-05-23 12:47 admin
Piezoelectric Digital Ultrasonic Generator Drive
An ultrasonic cleaner is mainly composed of three parts: ultrasonic power supply (also called ultrasonic generator)+ultrasonic transducer (that is, ultrasonic vibrator)+cleaning tank. The first two parts of the ultrasonic cleaner directly affect the effect of ultrasonic cleaning.

The ultrasonic transducer converts the electrical signal provided by the ultrasonic generator into mechanical vibration. Ultrasound generator is essentially a power signal generator, which produces sinusoidal (or similar sinusoidal) signals of a certain frequency. The development of ultrasonic generator is closely related to the development of power electronic devices. Ultrasound generator can be generally divided into electronic tubes and analog transistors. Switching transistor.
The ultrasonic generator

1. The ultrasonic generator is the core component of the ultrasonic cleaning system, which is indispensable.
2. The color of the shell of the ultrasonic generator is white.
3. Ultrasound generator (organic shell) power range: 300W small, 3000W large, of which 300w-3000w range is optional.
4. The frequency of the ultrasonic generator can be adjusted, but the housing needs to be opened to adjust; the power can be adjusted, the timing can be adjusted, and the frequency can be swept.
5. After replacing the generator of any vibration system, it is necessary to open and debug. The debugging method is simple and can be operated under the guidance of the operator. Without debugging, it is not necessarily effective.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

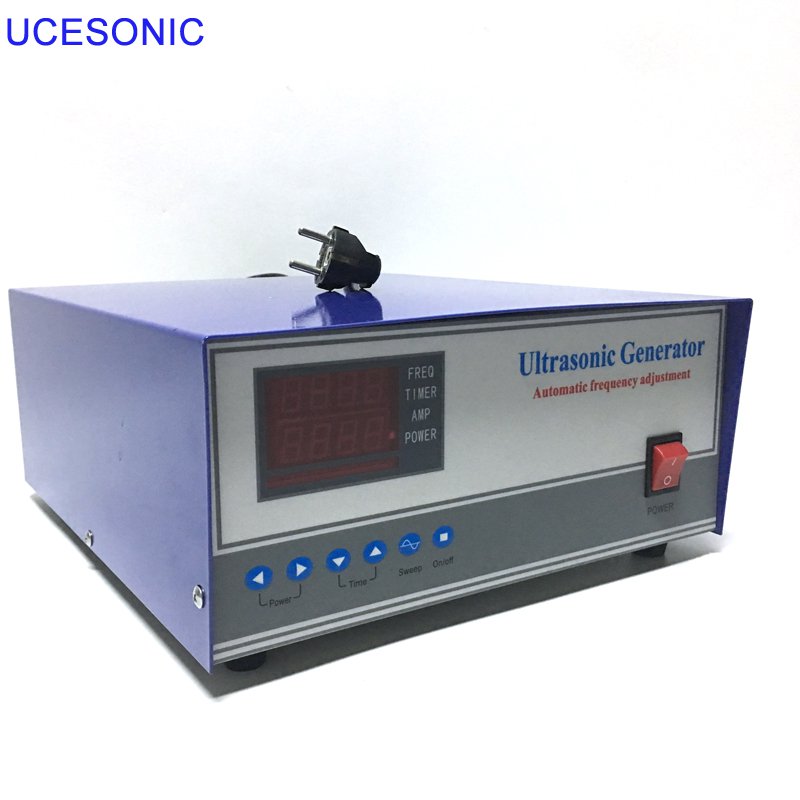

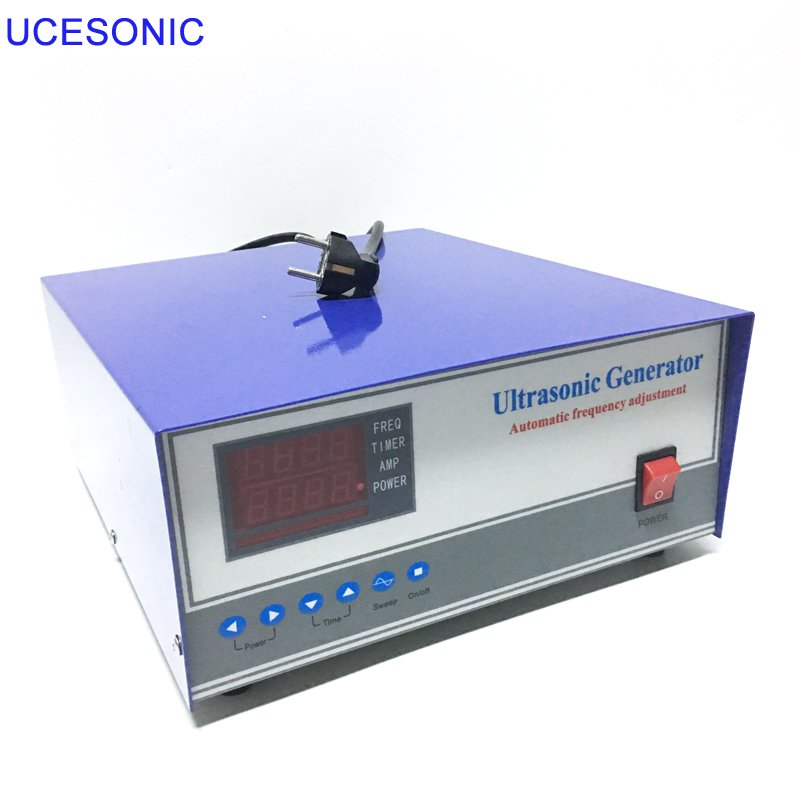

Piezoelectric Digital Ultrasonic Generator DrivePiezoelectric Digital Ultrasonic Generator Drive

Piezoelectric Digital Ultrasonic Generator Drive
