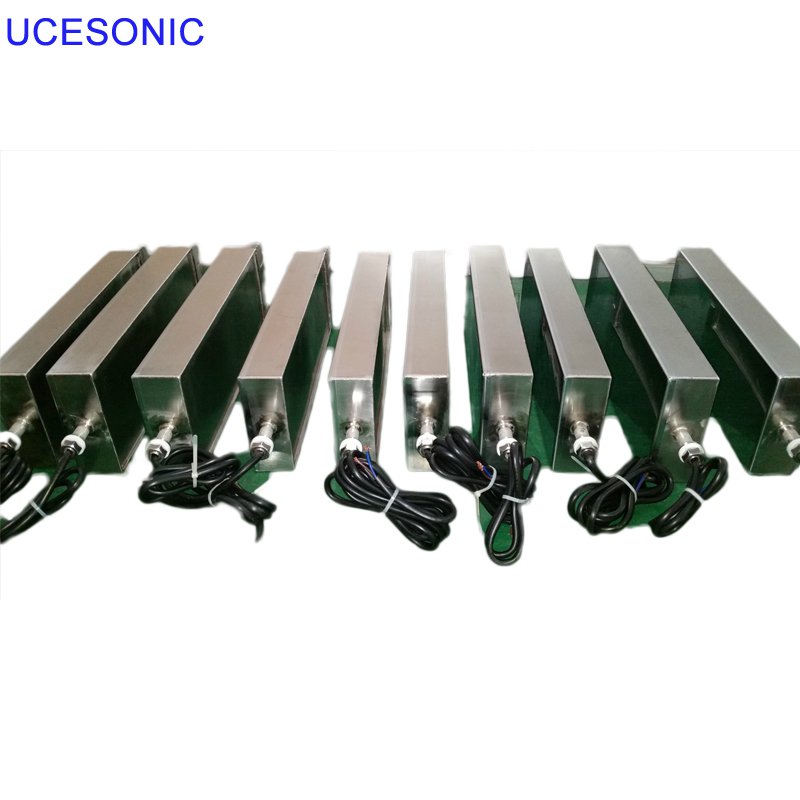

ultrasonic piezoelectric cleaning transducer ultrasonic plate
Ultrasound shock plate can be customized according to customer requirements for cleaning electroplated parts, clocks and watches parts, hardware and machinery parts, polyester filter core, semiconductor silicon, tools, lenses, spectacles frame, jewelry, jewelry, glass, utensils and other industries, widely used.
product mix
1: All stainless steel structure, acid and alkali resistance, beautiful and durable.
2: The split structure is adopted, and the high frequency connection with socket between the vibration plate and the
ultrasonic generator is adopted, which is convenient to use and maintain.
3: The installation and layout are flexible, and can be made into three types: bottom-shock type, side-shock type and top-shock type according to different needs to meet various cleaning requirements.
4: Superiority of ultrasonic vibration plate. Easy maintenance
5: When the power of trough type
ultrasonic cleaner is too small, the input type vibration plate device can be used. If a shock plate device is added to the existing cleaning tank, it is refitted into an
ultrasonic cleaning machine. It's also a low-cost way.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
