ultrasonic cleaning plating transducer and generator

2019-06-25 11:06 admin
ultrasonic cleaning plating transducer and generator

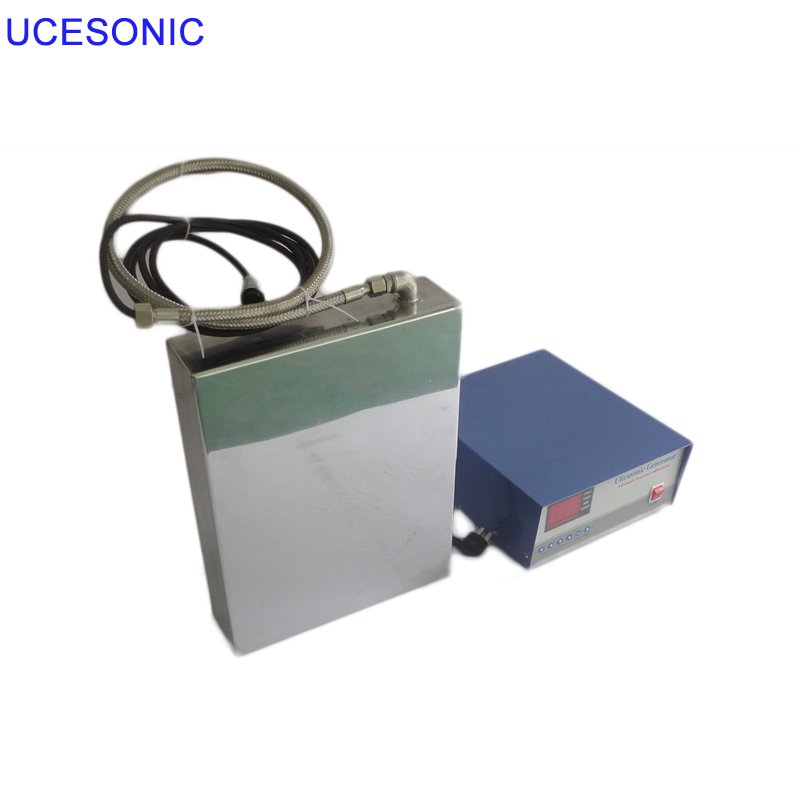

When the power of trough type ultrasonic cleaner is too small, the input type vibration plate device can be used. If a shock plate device is added to the existing cleaning tank, it is refitted into an ultrasonic cleaning machine. It's also a low-cost way.

The ultrasonic vibration plate can be designed in different positions in the cleaning tank according to the needs of customers.
The cleaning tank adopts stainless steel structure, acid and alkali resistance, durable;
Different specifications and combinations can be selected arbitrarily, and different forms of cleaning can be spliced to meet various cleaning needs.
Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
UCE-UITP300W 300*190*100 25,28,33,40,80,130 300 6
UCE-UITP600W 360*275*100 25,28,33,40,80,130 600 12
UCE-UITP1000W 450*350*100 25,28,33,40,80,130 1000 20
UCE-UITP1200W 470*380*100 25,28,33,40,80,130 1200 24
UCE-UITP1500W 520*450*100 25,28,33,40,80,130 1500 30
UCE-UITP1800W 560*450*100 25,28,33,40,80,130 1800 36
UCE-UITP2000W 650*450*100 25,28,33,40,80,130 2000 40
UCE-UITP2400W 740*520*100 25,28,33,40,80,130 2400 48
UCE-UITP3000W 820*540*100 25,28,33,40,80,130 3000 60
UCE-UITP5000W 1200*590*100 25,28,33,40,80,130 5000 100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
ultrasonic cleaning plating transducer and generator

ultrasonic cleaning plating transducer and generator
