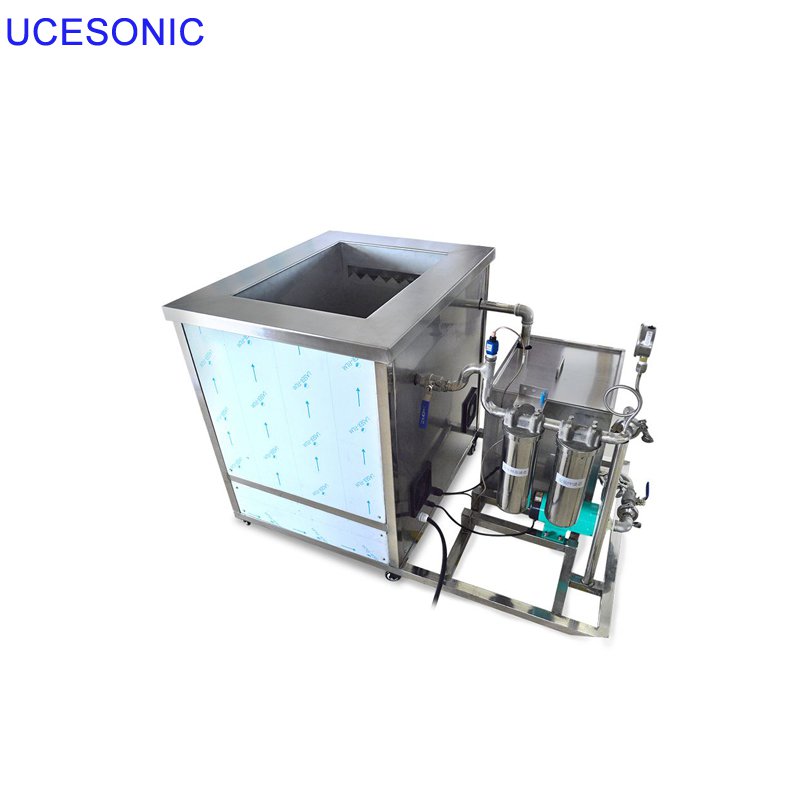

Large Industrial Filtering Circulation Function Ultrasonic Cleaner

Overview of circulating filter ultrasonic cleaner:

The circulating filtering ultrasonic cleaning machine adopts the digital advanced ultrasonic generation technology, LED digital display intuitively grasps the working state, the core power parts are imported from the United States, with more stable performance and long service life. The advanced automatic wide-band scanning technology selects different band width and scanning frequency, improves the performance of transducer parts, eliminates standing waves, improves the ultrasonic energy distribution, and Compared with ordinary ultrasonic, it has higher efficiency and more stable performance.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power (W)	Heating (W)	Total power(W)	voltage
UCE-XHXJ-1006	280×210×210	320×250×350	20,28,33,40,80,130	300	100	400	220V
UCE-XHXJ-1012	400×310×280	520×430×600	20,28,33,40,80,130	600	500	1100	220V
UCE-XHXJ-1018	490×360×320	610×480×675	20,28,33,40,80,130	900	500	1400	220V
UCE-XHXJ-1024	630×430×320	740×550×675	20,28,33,40,80,130	1200	1000	2200	220V
UCE-XHXJ-1030	630×530×320	750×650×675	20,28,33,40,80,130	1500	100	2500	220V
UCE-XHXJ-1036	680×530×360	800×650×700	20,28,33,40,80,130	1800	1000	2800	220V
UCE-XHXJ-1040	680×570×400	830×710×735	20,28,33,40,80,130	2000	1000	3000	220V
UCE-XHXJ-1041	730×570×450	880×710×735	20,28,33,40,80,130	2400	2000	4400	220V
ARS-XHXJ-1042	790×670×510	940×765×785	20,28,33,40,80,130	3000	2000	5000	380V
ARS-XHXJ-1043	850×770×570	990×820×785	20,28,33,40,80,130	4000	2000	6000	380V
UCE-XHXJ-1044	910×820×620	1050×880×840	20,28,33,40,80,130	5000	3000	8000	380V
UCE-XHXJ-1045	960×870×680	1100×940×920	20,28,33,40,80,130	8000	4000	12000	380V
UCE-XHXJ-1046	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	5000	15000	380V
