ultrasonic power transducer for cleaning

2019-05-31 12:47 admin
ultrasonic power transducer for cleaning
Compared with other cleaning methods, the ultrasonic transducer has shown great superiority in the ultrasonic cleaning machine.
2. Especially in the specialized and group production enterprises, the ultrasonic cleaning machine has gradually replaced the traditional soaking, scrubbing, pressure washing, vibration cleaning and steam cleaning. The high efficiency and cleanliness of the ultrasonic cleaner are attributed to the penetration and cavitation shock wave generated by the sound wave propagating in the medium. So it is easy to clean the parts with complex shape, inner cavity and fine void. For general degreasing, rust-proof, phosphating and other process, it can be completed in two or three minutes under the action of ultrasound. Its speed is several times to several dozen times faster than the traditional method, and its cleanliness can also reach high standards. This is more important in many occasions which require higher surface quality and productivity of products. It highlights the results that are difficult to achieve or irreplaceable by other processing methods.

3. The advantages are summarized as follows:
(1) The cleaning speed is fast, the cleaning effect is good, the cleanliness is high, the cleanliness of the workpiece is the same, and the workpiece surface is not damaged.
(2) It is safe and reliable to clean deep holes, slits and concealed parts of the workpiece without touching the cleaning fluid by hand.
(3) Save solvents, heat energy, workplaces and manpower, etc.
(4) The cleaning precision is high, and the micro-stain particles can be cleaned forcefully.
Type Length（mm） Weight（g） Frequency（KHz） Resonance Impedance
（Ω）		 Static Capacity
（pF）±10%		 Input Power（W）
UCE-UT-20100
PZT-8
 		 94
 		 900
 		 20
 		 10-20
 		 5200
 		 100

UCE-UT-25100
PZT-4		 77
 		 710
 		 25
 		 10-20
 		 6600
 		 100

UCE-UT-28120
PZT-4		 66
 		 720
 		 28
 		 10-20
 		 7800
 		 120

UCE-UT-28100
PZT-8		 66
 		 625
 		 28
 		 10-20
 		 5200
 		 100

UCE-UT-28100
PZT-4		 66
 		 624
 		 28
 		 10-20
 		 6600
 		 100

UCE-UT-30100
PZT-8		 61
 		 555
 		 30
 		 10-20
 		 5200
 		 100

UCE-UT-2560
PZT-4		 77
 		 530
 		 25
 		 10-20
 		 5400
 		 60

UCE-UT-2860
PZT-8		 68
 		 470
 		 28
 		 10-20
 		 3800
 		 60

UCE-UT-2850
PZT-4		 82
 		 425
 		 28
 		 10-20
 		 4100
 		 50

UCE-UT-3360
PZT-8		 58
 		 420
 		 33
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-8		 55
 		 300
 		 40
 		 10-20
 		 3800
 		 60

UCE-UT-4060
PZT-4		 56
 		 310
 		 40
 		 10-20
 		 5400
 		 60

UCE-UT-4050
PZT-4		 54
 		 260
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-4050-1
PZT-4		 57
 		 300
 		 40
 		 10-20
 		 4100
 		 50

UCE-UT-5435
PZT-4		 36
 		 135
 		 54
 		 10-20
 		 3200
 		 35

UCE-UT-6860
PZT-8		 80
 		 460
 		 68
 		 10-20
 		 3800
 		 60

UCE-UT-68120
PZT-4		 67
 		 588
 		 68
 		 10-20
 		 7800
 		 120

UCE-UT-8060
PZT-4		 60
 		 325
 		 80
 		 10-20
 		 5400
 		 60

UCE-UT-12060
PZT-4		 56
 		 260
 		 120
 		 10-20
 		 5400
 		 60

UCE-UT-13550
PZT-4		 54
 		 215
 		 135
 		 10-20
 		 4200
 		 50

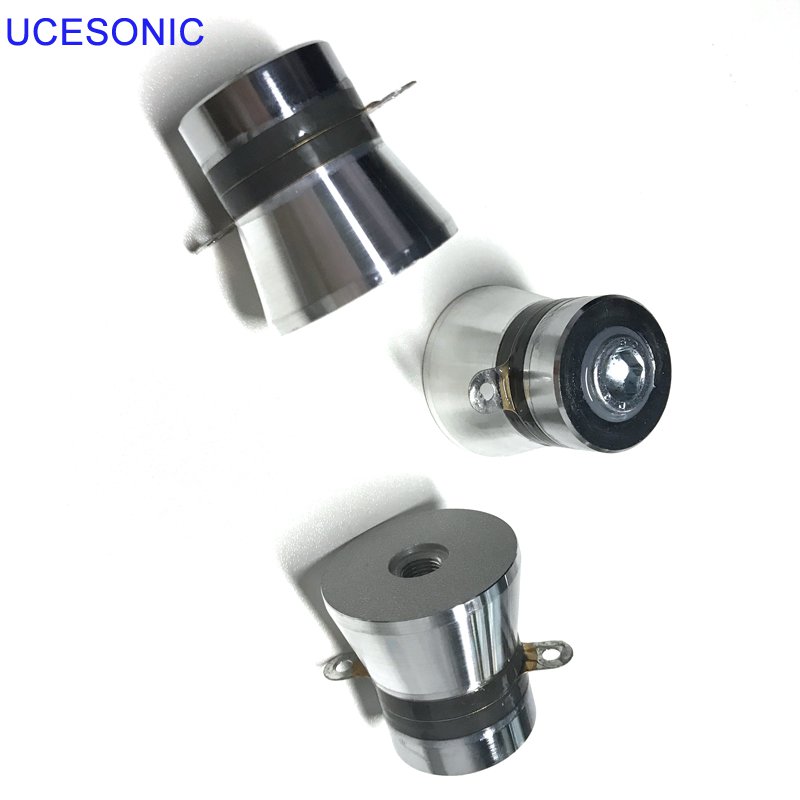

ultrasonic power transducer for cleaning
