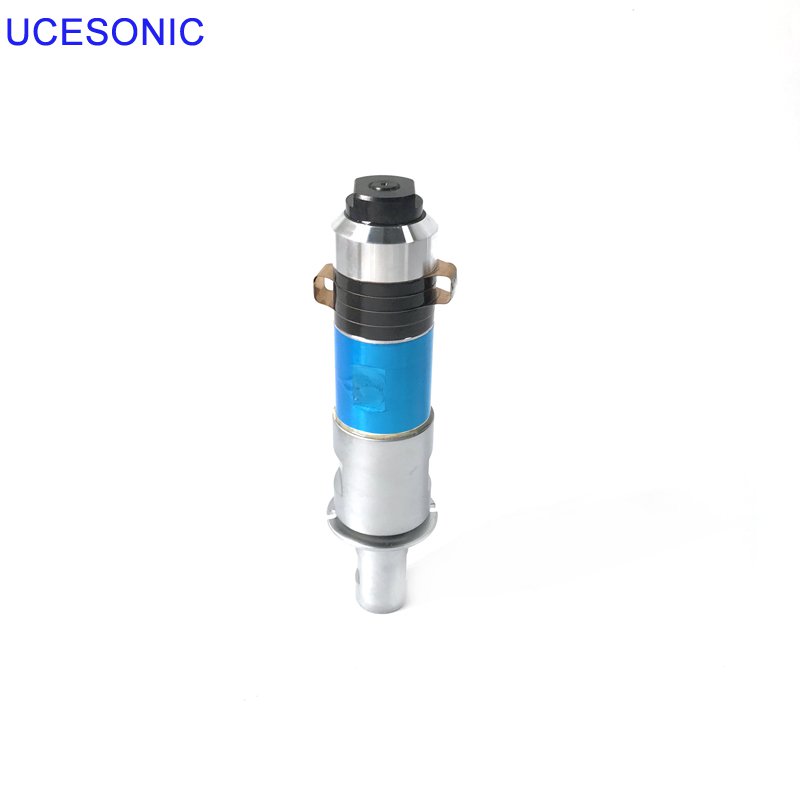

Ultrasonic Welder Converters and Boosters 2000W

Ultrasonic Welder Converters and Boosters 2000W
ultrasonic welding transducer aims at the ultrasonic processing of thermoplastic adhesive. It uses high frequency friction between working surfaces to produce heat rapidly between molecules. When the heat is enough to melt, it stops the ultrasonic vibration. At this time, the working interface solidifies by melting and completes the processing procedure. Usually, the frequencies used in plastic processing are 20KHZ and 15KHZ, whose frequencies are beyond human hearing, so they are called supersonic wave. Ultrasound welding machine should be applied to PP, PE, ABS, acrylic and other materials such as electronic industry, stationery industry, traffic equipment, toys, cosmetics, motor and so on. 15KHz ultrasonic plastic welding machine has its unique advantages in welding soft PE and PP materials, as well as large diameter and long length plastic welding parts. It can meet the needs of various products and contribute to improving production efficiency and product grade for users. Product scope of use: 1, plastic toys, water guns, aquarium games, children's dolls, plastic gifts, etc. 2, electronic products: recording, tape box and core wheel, disk shell, mobile phone battery board and rectifier transformer, switch socket, remote control, electronic mosquito racket, imitation bottle cap, etc. 3. Household appliances: electronic clocks, blow drums, steam ironing water tanks, electric kettles, computers, etc. 4. Stationery daily necessities: stationery box, aquarium ruler, folder seam and shell, pen holder, cosmetic box case, toothpaste tube tail sealing, cosmetic mirror, insulating cup, lighter, condiment bottle and other sealed containers. 5. Automobiles and motorcycles: batteries, headlights, rear lights, meters, reflectors, etc.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
